Fasco

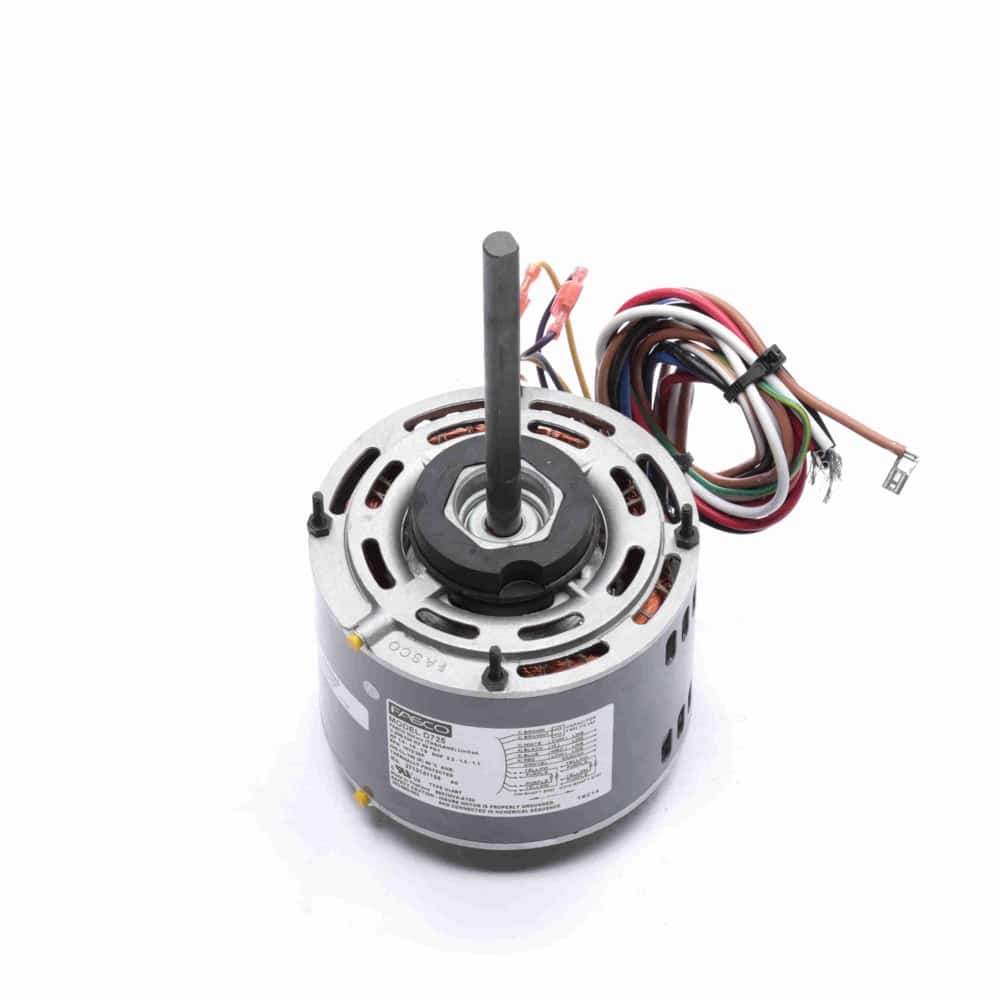

1/4HP PSC 5.6″ 3spd 1075 REV 208-230V 5uF CF
Mfr # D742 | Wright’s # FAS D742
1/4HP Condenser Fan Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D742
Wright's #
FAS D742
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.98
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Condenser Fan Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shell on Shaft End and Shaft End End-Frame, Enclosed Shell on Lead End and Lead End End-Frame, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЃ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
