Fasco

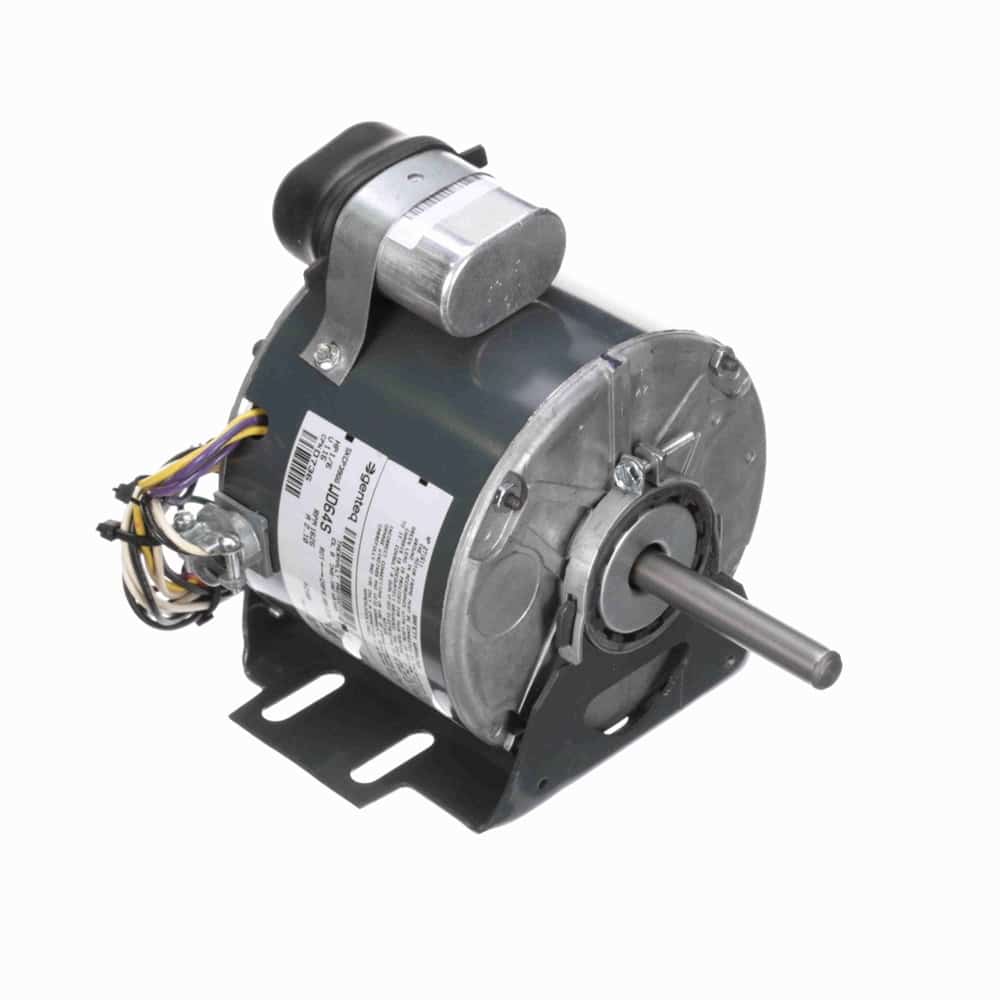

1/6HP PSC 5.6″ 1625 REV 115V 5uF-inc
Mfr # D736 | Wright’s # FAS D736
1/6HP Unit Heater Motor, 1 Phase, 5.6″ Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 115V, TE Enclosure
$362.63
Product Information
Brand
Fasco
Mfr #
D736
Wright's #
FAS D736
Specifications
C Dim
8.14"
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
5.6"
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.10
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Description
Unit Heater Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatЍ” Leads
Resilient Base
120V
