Fasco

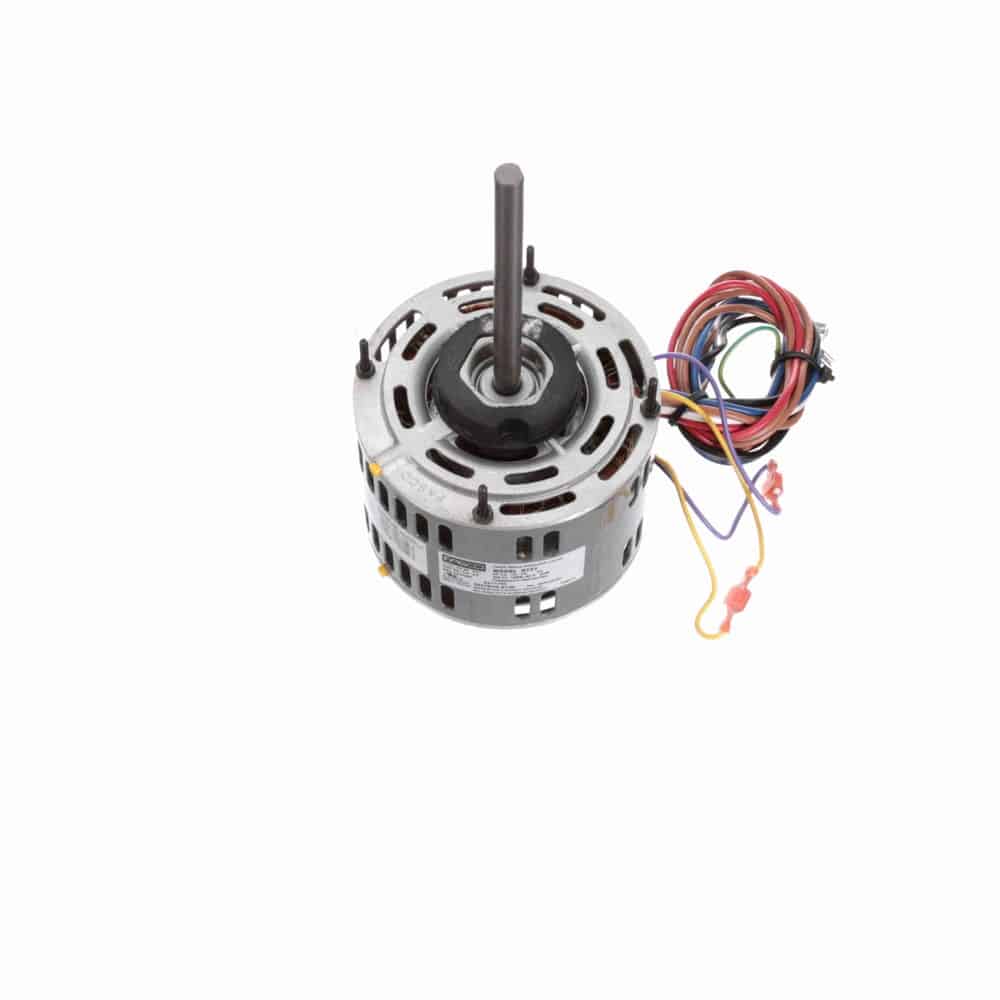

1/4HP PSC 5.6″ 3spd 1075 REV 115V 5uF BM
Mfr # D721 | Wright’s # FAS D721
1/4-1/5-1/6HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D721
Wright's #
FAS D721
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5.6"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4-1/5-1/6 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
4.8-3.3-2.6
Rated Voltage
115
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatЂ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
120V
