Fasco

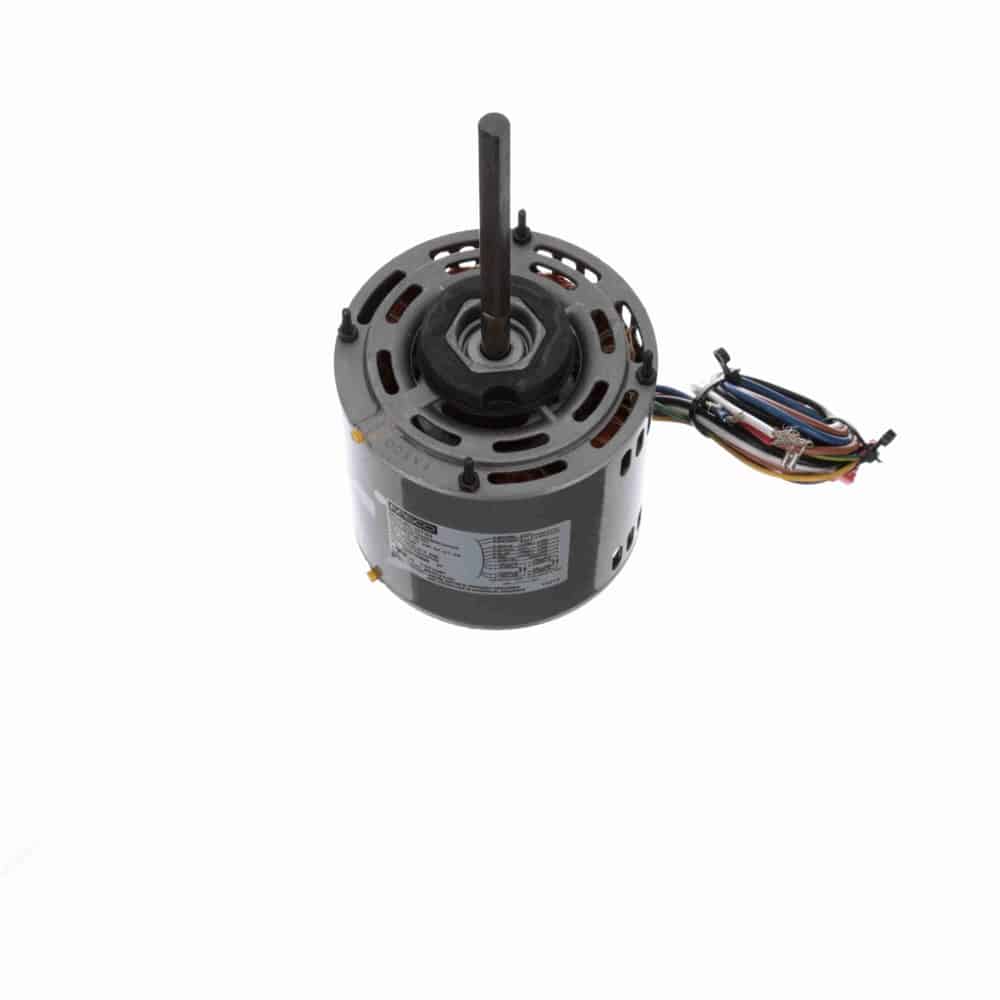

1/2HP PSC 5.6″ 3spd 1075 REV 208-230V 5uF BM
Mfr # D703 | Wright’s # FAS D703
1/2-1/3-1/4HP Fan & Blower Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D703
Wright's #
FAS D703
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Frame
5.6"
Frequency
60 Hz
HP
0.5 HP
HP2
1/2-1/3-1/4 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
4.0-2.7-2.0
Rated Voltage
208-230
Rotation
Reversible
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Direct Drive Fan and Blower Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End and Lead End, Shell Half Vented, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with Double FlatЂ” Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mounting (Belly Band Not Included)
