Fasco
1/15HP ShP 3.3″ 1550 CCWSE 115/208-230V RF
Mfr # D671B | Wright’s # FAS D671B

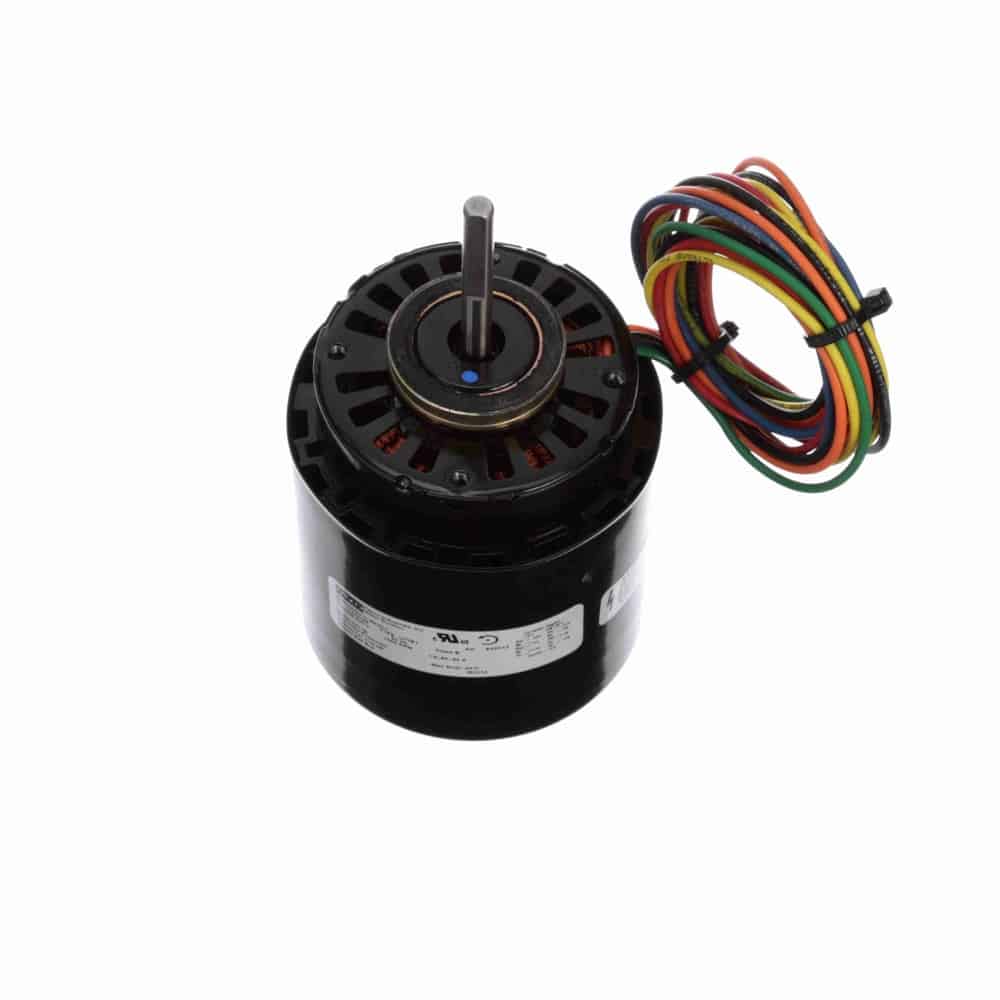

1/15HP Refrigeration Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115/208-230V, OAO Enclosure
$144.74
Product Information
Brand
Fasco
Mfr #
D671B
Wright's #
FAS D671B
Country of Origin
MEX
Specifications
C Dim
7.48"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.90/0.84-0.94
Rated Voltage
115/208-230
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatЋ” Leads
Resilient Mounting Ring Shaft End and Opposite Shaft End
