Fasco
1/50HP ShP 3.3″ 1500 CCWSE 115V BM
Mfr # D601 | Wright’s # FAS D601

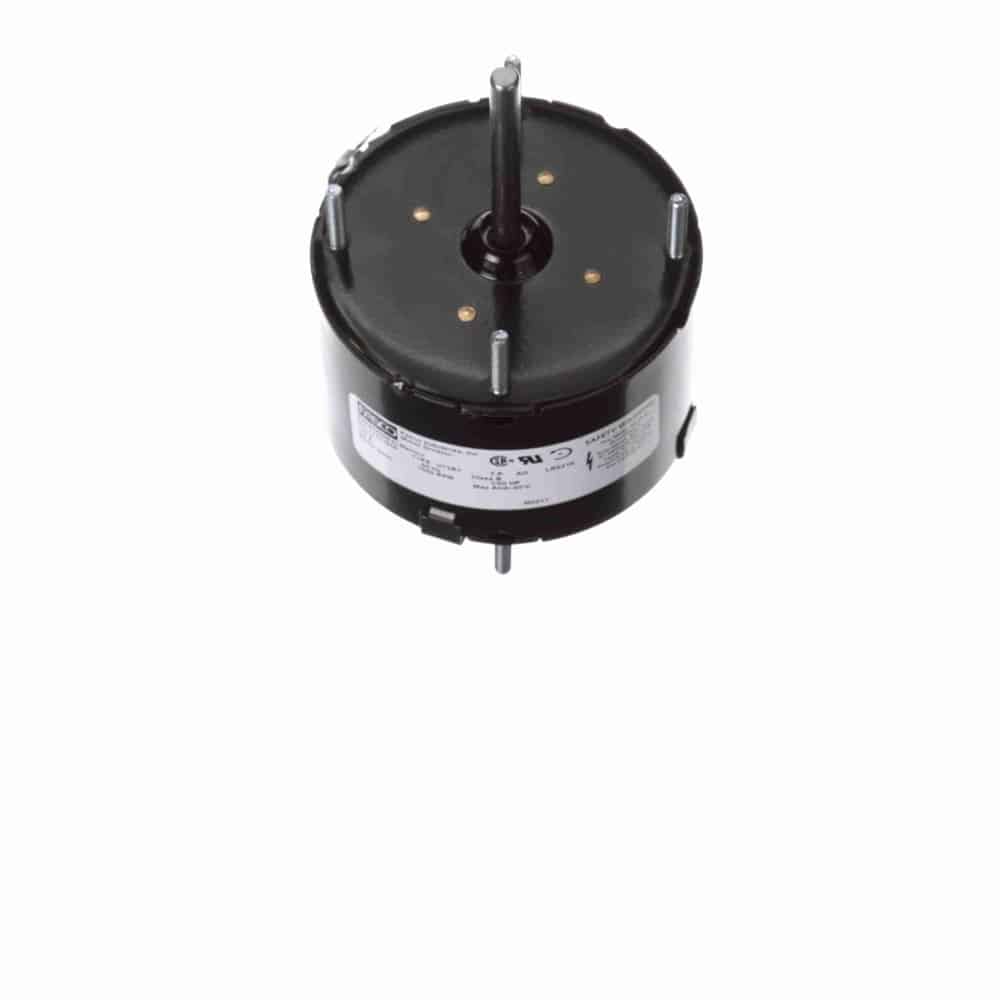

1/50HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TE Enclosure
$85.03
Product Information
Brand
Fasco
Mfr #
D601
Wright's #
FAS D601
Country of Origin
MEX
Specifications
C Dim
4.79"
Electrical Type
Shaded Pole
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.02 HP
HP2
1/50 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.90
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1500
Service Factor
1
Shaft Diameter
0.25"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatϴ” Leads with Molded Plug
Extended Studs Shaft End and Lead End
120V
