Fasco

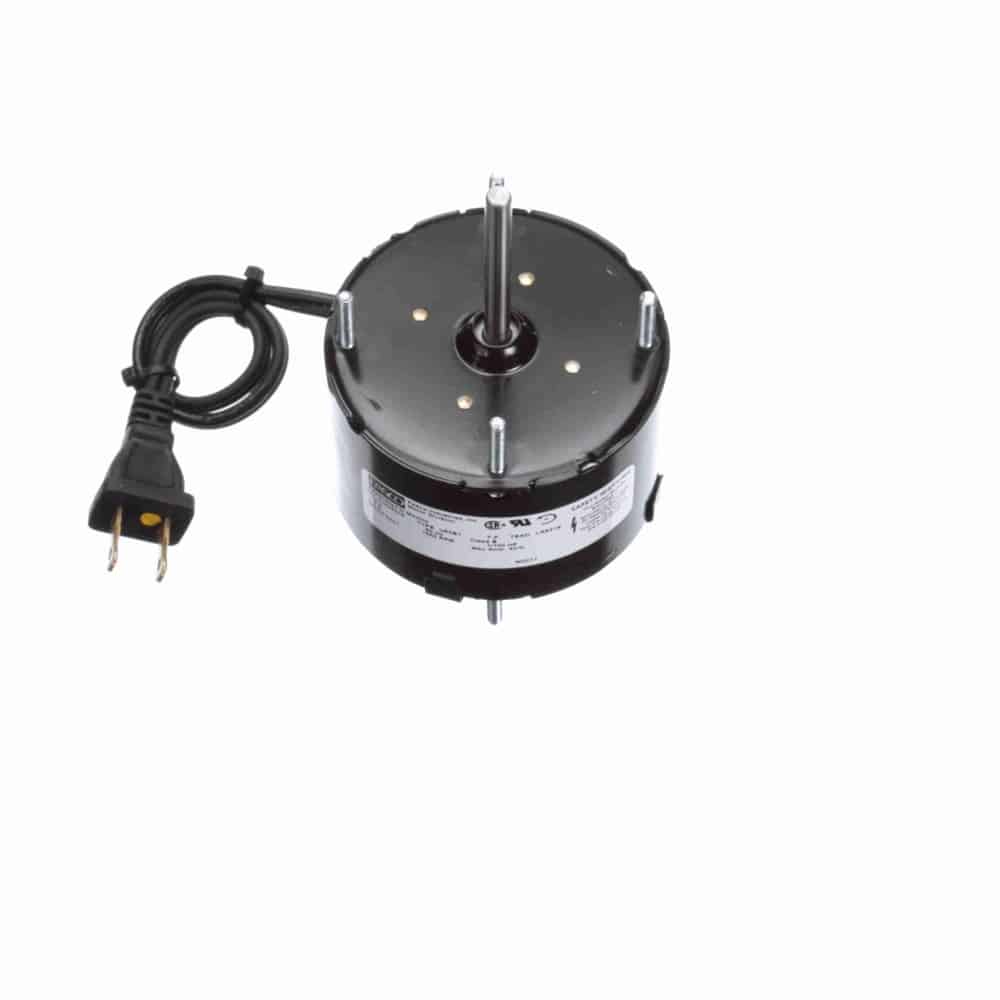

1/100HP ShP 3.3″ 1550 CCWSE 115V
Mfr # D541 | Wright’s # FAS D541
1/100HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, TE Enclosure
$88.45
You save (%)
Product Information
Brand Fasco
Mfr # D541
Wright's # FAS D541
Country of Origin MEX
Specifications
C Dim 4.78"
Electrical Type Shaded Pole
Enclosure TE
Frame 3.3"
Frequency 60 Hz
HP 0.01 HP
HP2 1/100 HP
Insulation Class B
kW 0.01kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.60
Rated Voltage 115
Rotation Counterclockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.25"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatϴ” Leads with Molded Plug
Extended Studs Shaft End and Lead End
120V
