Fasco

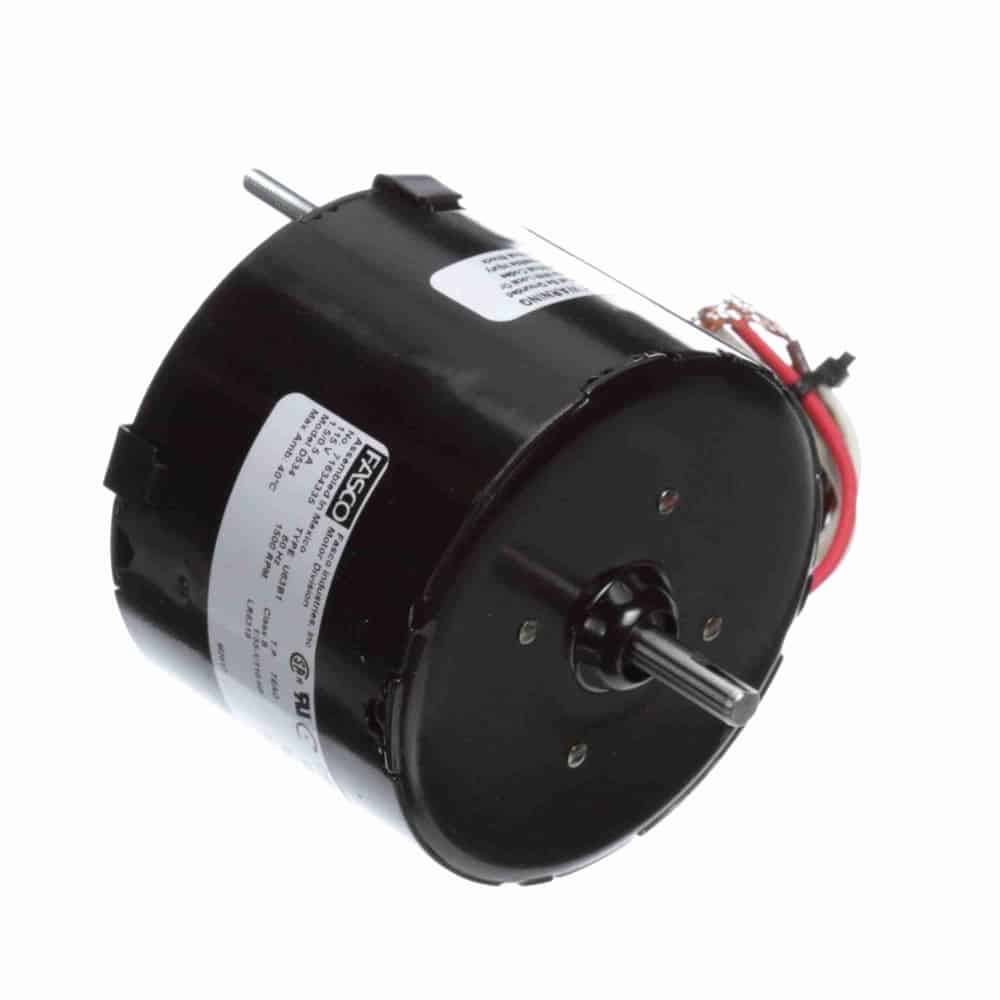

1/35HP ShP 3.3″ 2spd 1500 CWSE 115V
Mfr # D534 | Wright’s # FAS D534
1/35-1/110HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 2 Speed, Shaded Pole, 115V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D534
Wright's #
FAS D534
Country of Origin
MEX
Specifications
C Dim
4.13"
Electrical Type
Shaded Pole
Enclosure
TE
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/35-1/110 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.50/0.50
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1500
Service Factor
1
Shaft Diameter
0.25"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatl” Leads
Extended Studs Lead End
120V
