Fasco

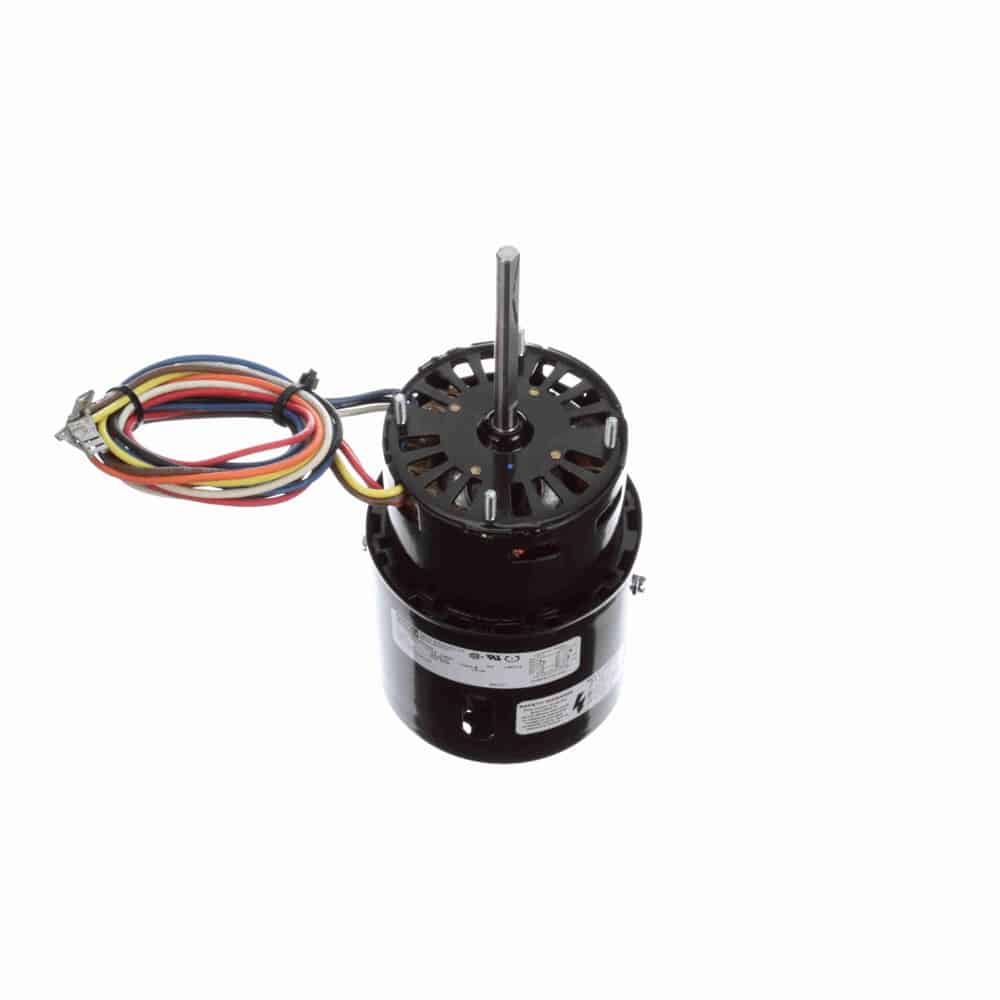

1/8HP PSC 3.3″ 1550 REV 115/230V 10uF BM
Mfr # D504 | Wright’s # FAS D504
1/8HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D504
Wright's #
FAS D504
Country of Origin
MEX
Specifications
C Dim
9.25"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.1kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.60/.080
Rated Voltage
115/230
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Fan Cooled
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϼ” Leads
Extended Studs Shaft End
