Fasco

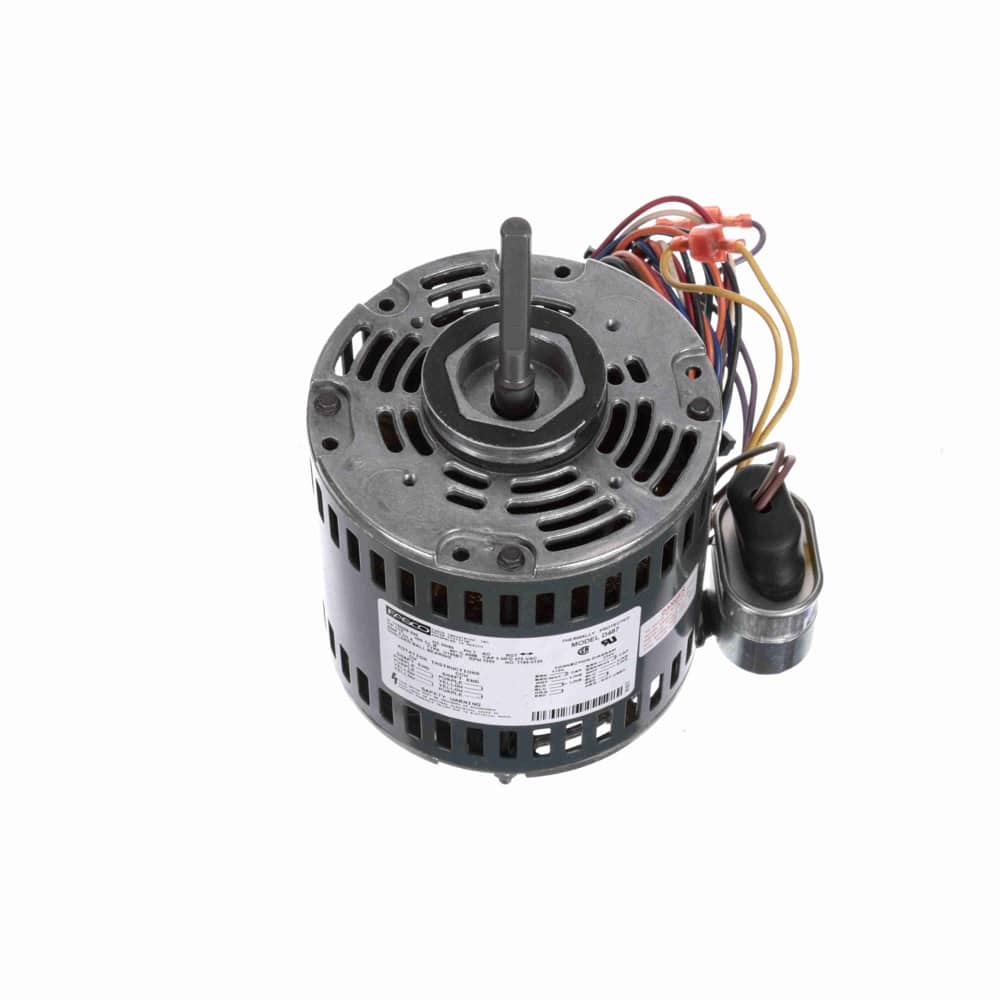

1/10HP PSC 5″ 1550 REV 115/208-230V 5uF-inc RF
Mfr # D487 | Wright’s # FAS D487
1/10HP Refrigeration Motor, 1 Phase, 5″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, OAO Enclosure
$236.22
Product Information
Brand Fasco
Mfr # D487
Wright's # FAS D487
Country of Origin MEX
Specifications
C Dim 8.49"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5"
Frequency 60 Hz
HP 0.1 HP
HP2 1/10 HP
Insulation Class B
kW 0.07kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.7/1.4
Rated Voltage 115/208-230
Rotation Reversible
RPM 1550
Service Factor 1
Shaft Diameter 0.375"
Starting Method
Description
Refrigeration Fan Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
3/8″ Diameter Shaft with FlatІ” Leads
Extended Studs Opposite Shaft End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)
