Fasco

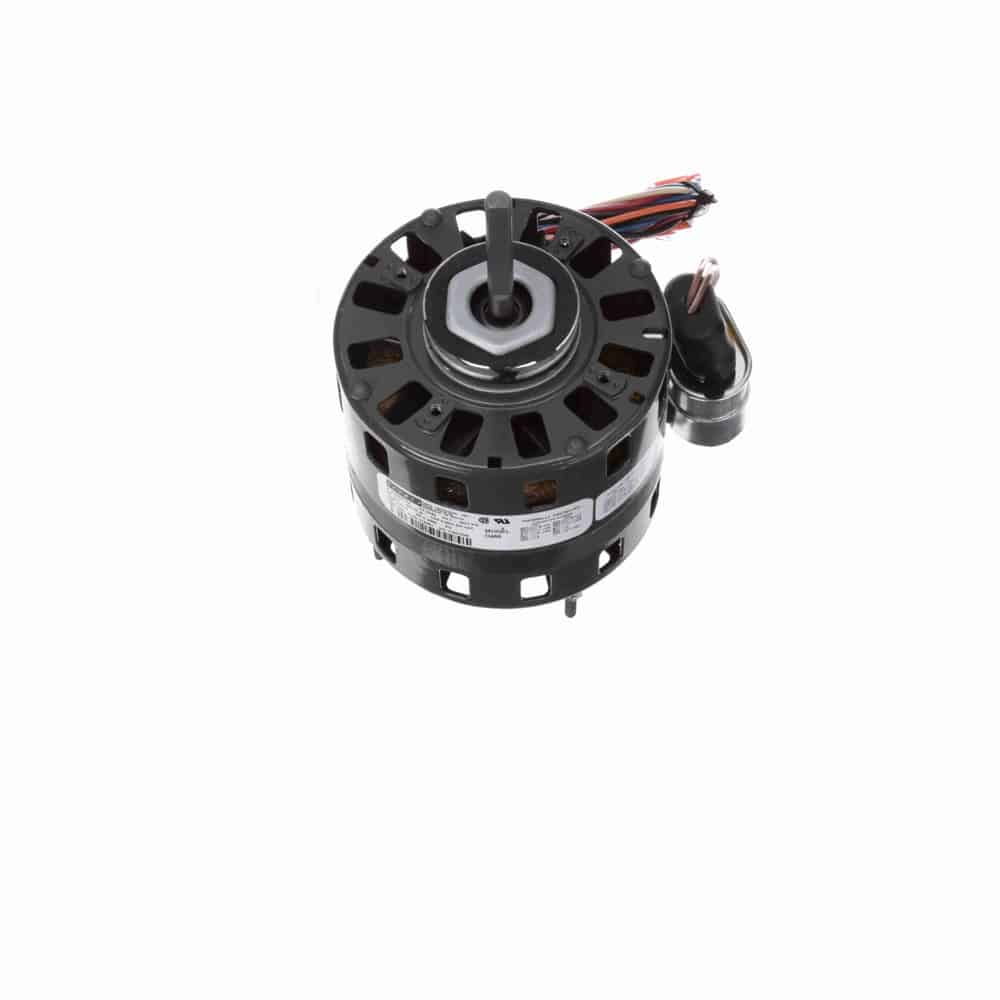

1/10HP PSC 5″ 1550 REV 115/208-230V 5uF-inc RF
Mfr # D486 | Wright’s # FAS D486
1/10HP Refrigeration Motor, 1 Phase, 5″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115/208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D486
Wright's #
FAS D486
Specifications
C Dim
8.06"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.5/1.3
Rated Voltage
115/208-230
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
Refrigeration Fan Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatІ” Leads
Extended Studs Opposite Shaft End, Resilient Ring Mounting, Belly Band Mount (Belly Band Not Included)
