Fasco

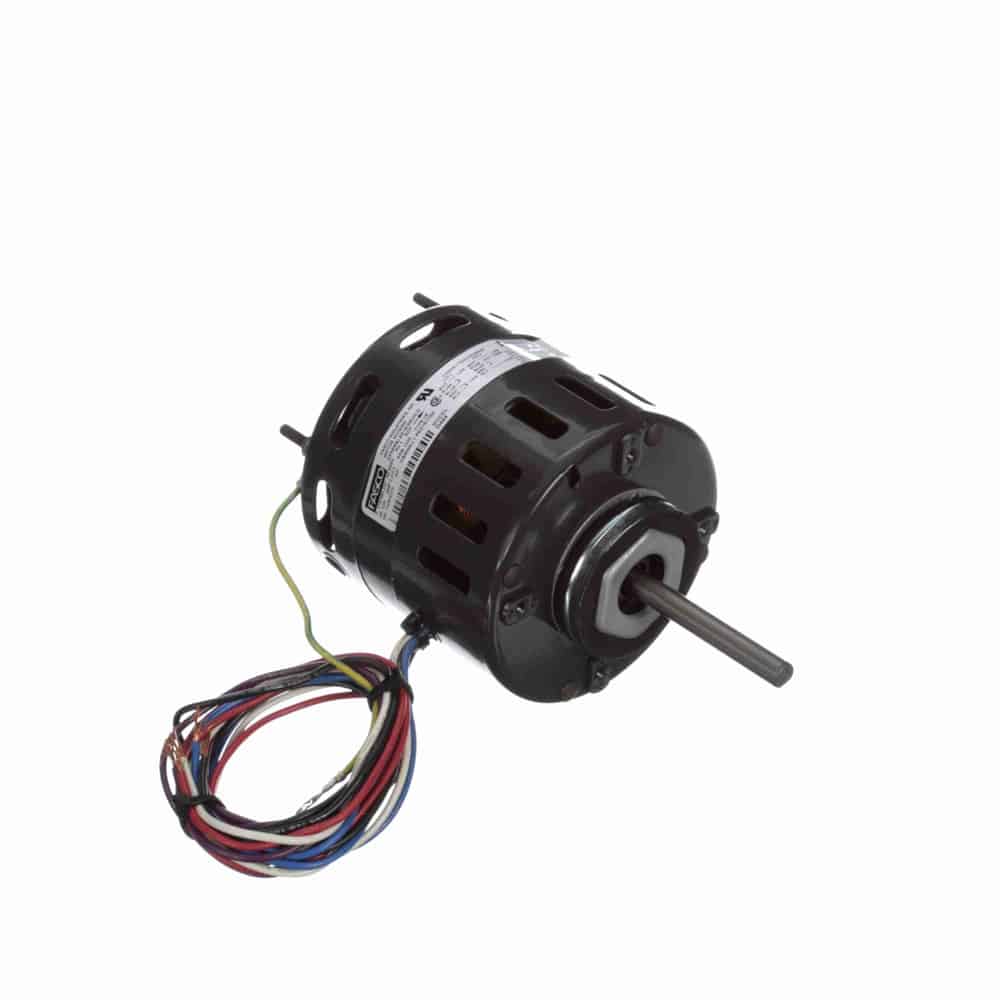

1/20HP ShP 4.4″ 1550 CWSE 115/208-230V RF
Mfr # D484 | Wright’s # FAS D484
1/20HP Refrigeration Motor, 1 Phase, 4.4″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115/208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D484
Wright's #
FAS D484
Country of Origin
MEX
Specifications
C Dim
7.94"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60/50 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
A
kW
0.04kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.2/1.1
Rated Voltage
115/208-230
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
Refrigeration Fan Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End End-Frame, Open Opposite Shaft End End-Frame and Shell, Air over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatЇ” Leads
Extended Studs Opposite Shaft End, Resilient Mounting Rings
