Fasco
1/12HP ShP 3.3″ 1550 CCWSE 208/230V RF
Mfr # D469 | Wright’s # FAS D469

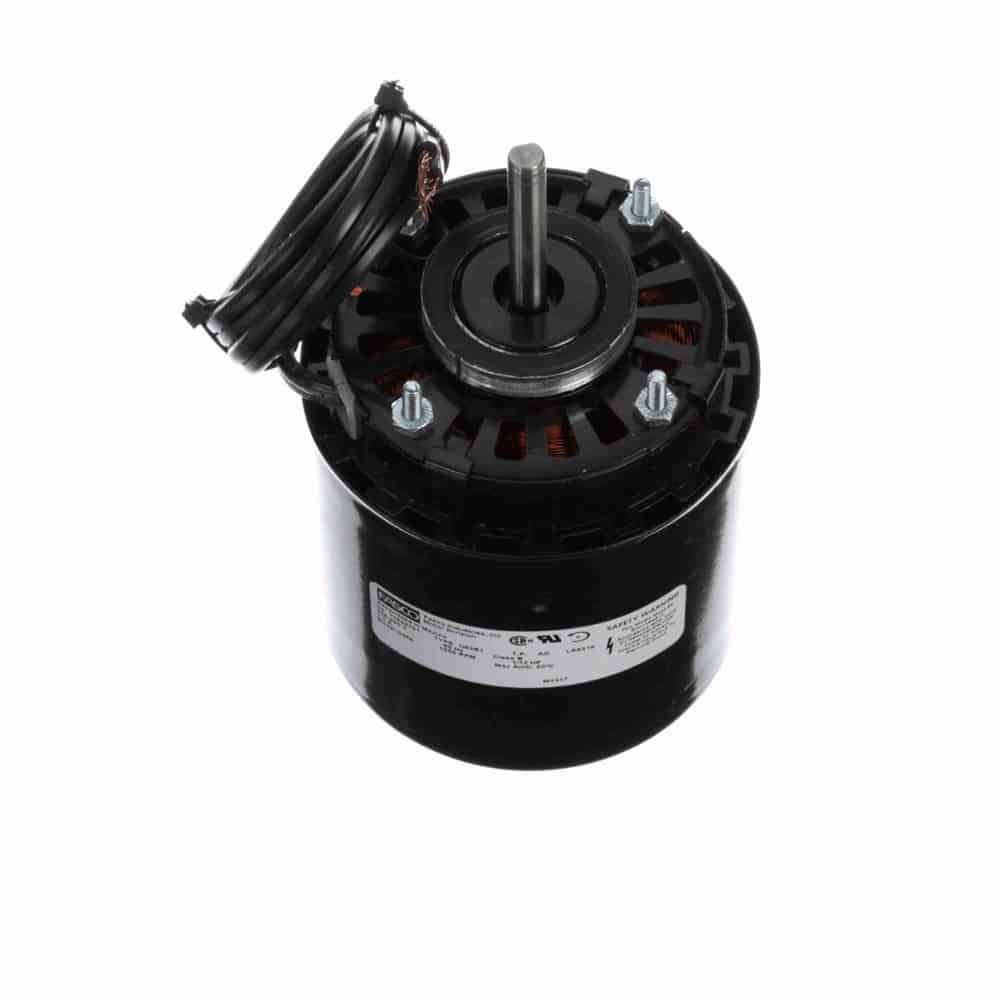

1/12HP Refrigeration Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 208/230V, OAO Enclosure
$203.68
Product Information
Brand
Fasco
Mfr #
D469
Wright's #
FAS D469
Country of Origin
MEX
Specifications
C Dim
6.98"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
kW
0.06kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.30
Rated Voltage
208/230
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
Refrigeration Fan Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with FlatІ” Leads
Extended Studs Shaft End, Resilient Mounting Ring Shaft End and Opposite Shaft End
