Fasco

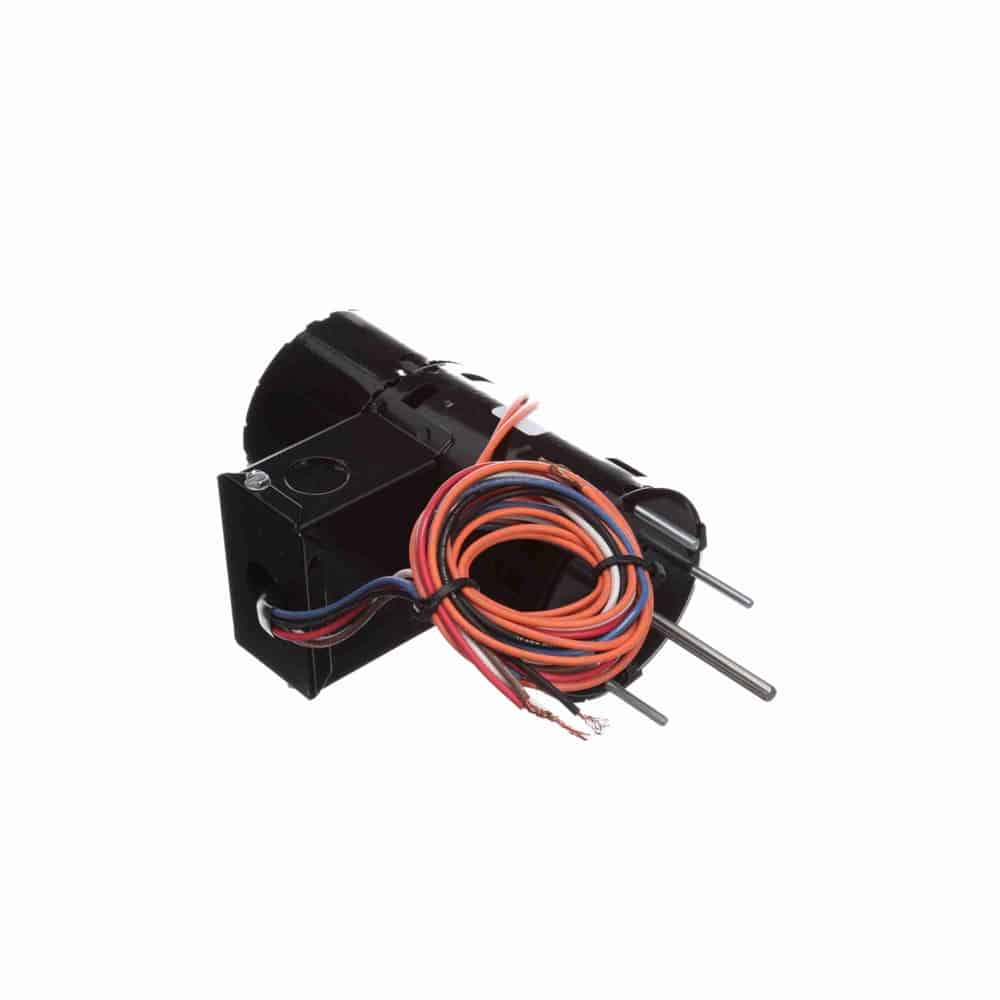

1/15HP ShP 3.3″ 3000 CWSE 115/230V
Mfr # D456 | Wright’s # FAS D456
1/15HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
$216.20
Product Information
Brand
Fasco
Mfr #
D456
Wright's #
FAS D456
Country of Origin
MEX
Specifications
C Dim
9.42"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
50 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.0/1.0
Rated Voltage
115/230
Rotation
Clockwise Shaft End
RPM
3000
Shaft Diameter
0.25"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flat
Conduit Box, 32″ Power Leads, 32″ Switch Leads
Extended Studs Shaft End
