Fasco

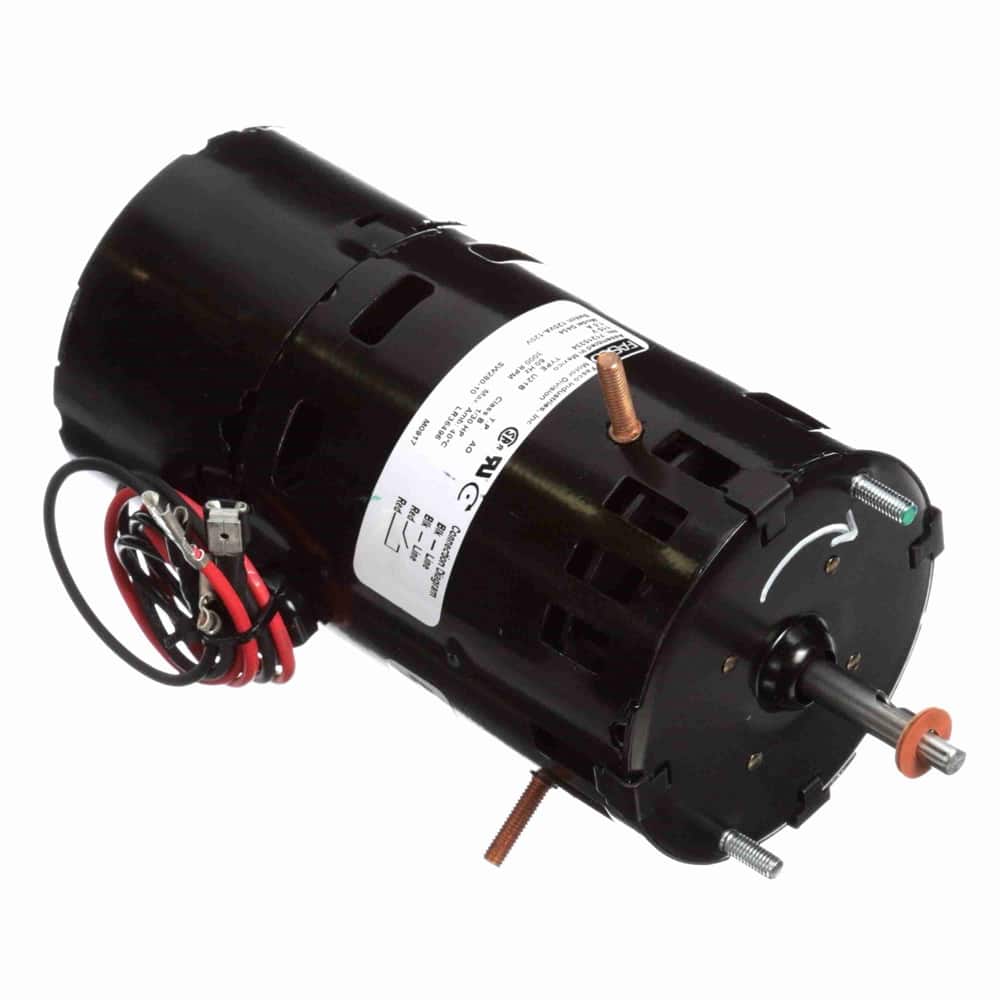

1/30HP ShP 3.3″ 3000 CWSE 115V
Mfr # D454 | Wright’s # FAS D454
1/30HP Draft Inducer Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D454
Wright's #
FAS D454
Country of Origin
MEX
Specifications
C Dim
7.94"
Electrical Type
Shaded Pole
Enclosure
OAO
Full Load Efficiency
25
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/30 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.5
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
3000
Shaft Diameter
0.25"
Starting Method
Description
Draft Inducer Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shell, Enclosed Shaft End End-Frame and Lead, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatϲ” Leads with Quick Connect Terminals, 10″ Switch Leads with Quick Connect Terminals
Extended Studs Shaft End, Shell Extended Studs 120 Degrees Apart
120V
