Fasco

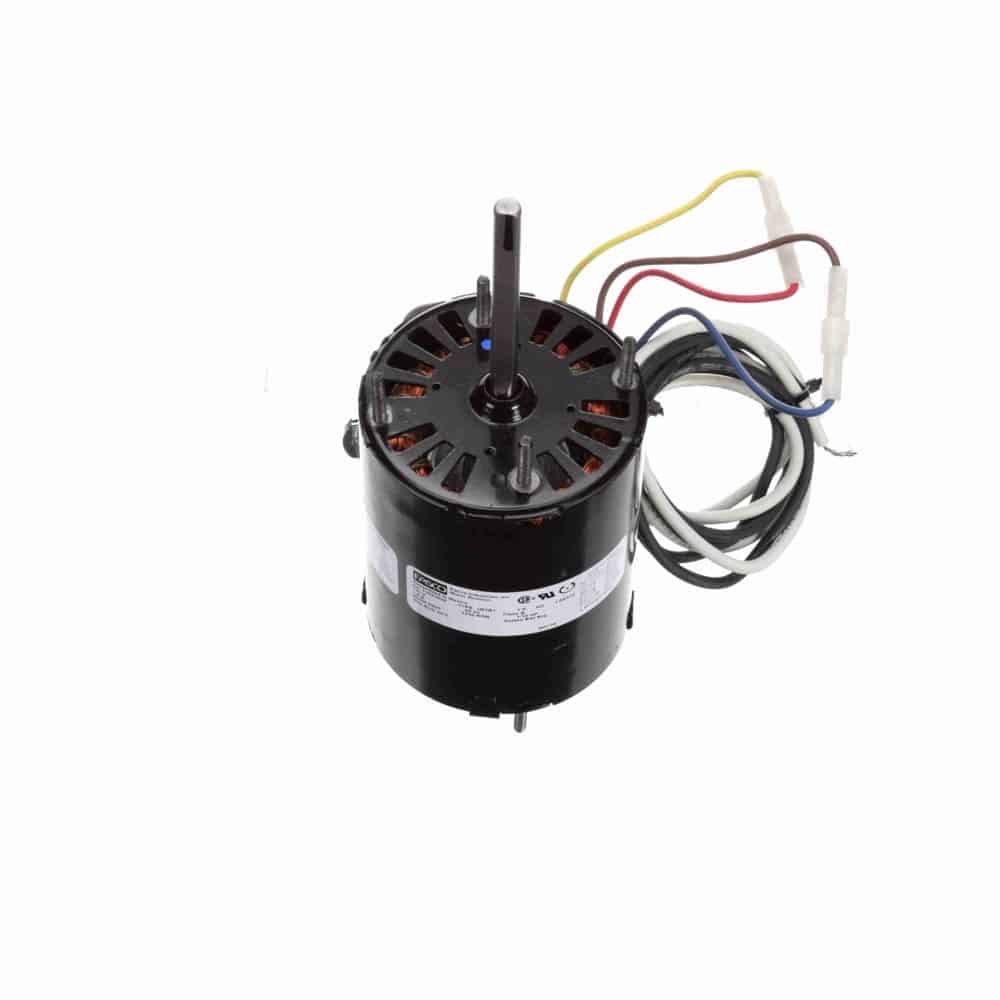

1/10HP PSC 3.3″ 3200 REV 115V 4uF-inc
Mfr # D405 | Wright’s # FAS D405
1/10HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 3200 RPM, 1 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$371.77
Product Information
Brand Fasco
Mfr # D405
Wright's # FAS D405
Country of Origin MEX
Specifications
C Dim 7.8"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 3.3"
Frequency 60 Hz
HP 0.1 HP
HP2 1/10 HP
Insulation Class B
kW 0.07kW
Material Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 1.4
Rated Voltage 115
Rotation Reversible
RPM 3200
Service Factor 1
Shaft Diameter 0.312"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Opposite Lead End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatЌ” Leads
Extended Studs Shaft End and Opposite Shaft End
120V
