Fasco

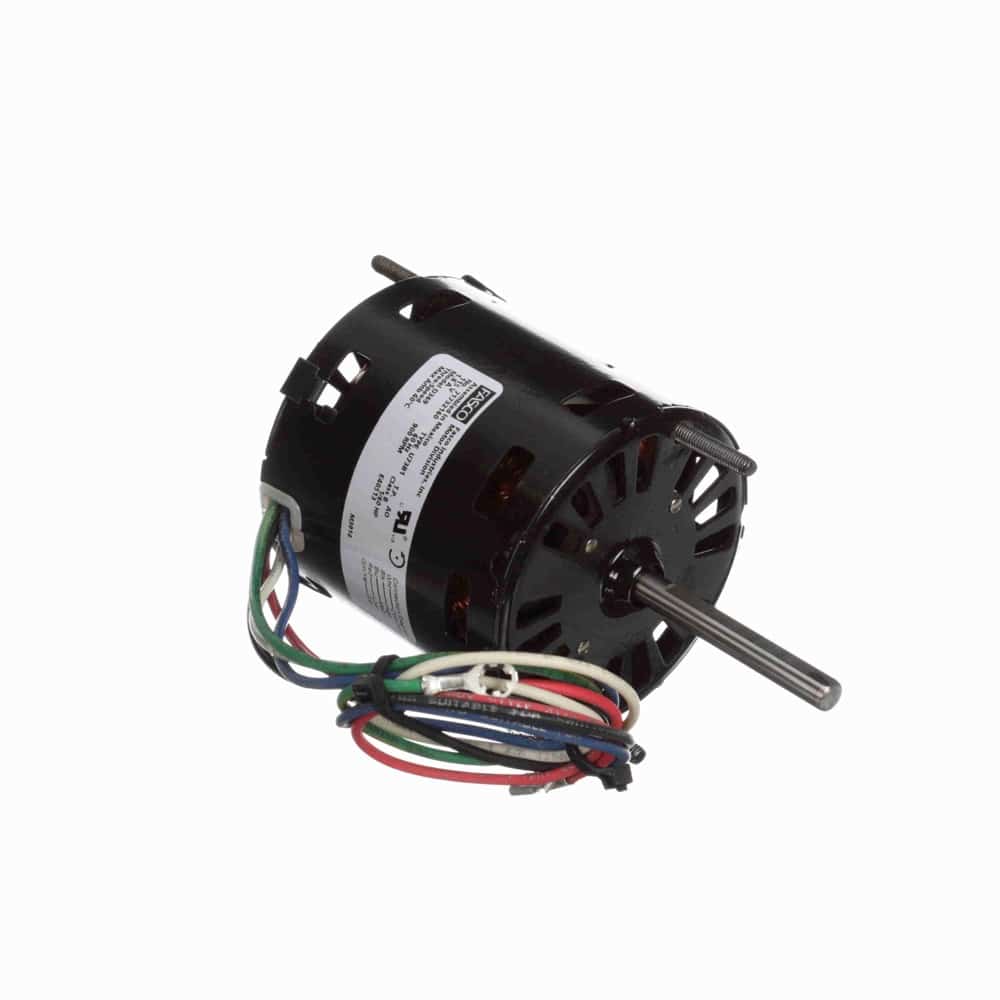

1/60HP ShP 3.3″ 3spd 900 CCWSE 115V
Mfr # D369 | Wright’s # FAS D369
1/60HP Ventilation Motor, 1 Phase, 3.3″ Frame, 900 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D369
Wright's #
FAS D369
Country of Origin
MEX
Specifications
C Dim
5.94"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.02 HP
HP2
1/60 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
8
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.80
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
900
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
Fan and Blower Duty Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with FlatϷ” Leads
Exntend Studs Shaft End and Opposite Shaft End
120V
