Fasco
1/8HP ShP 4.4″ 2spd 1550 REV 230V DS
Mfr # D339 | Wright’s # FAS D339

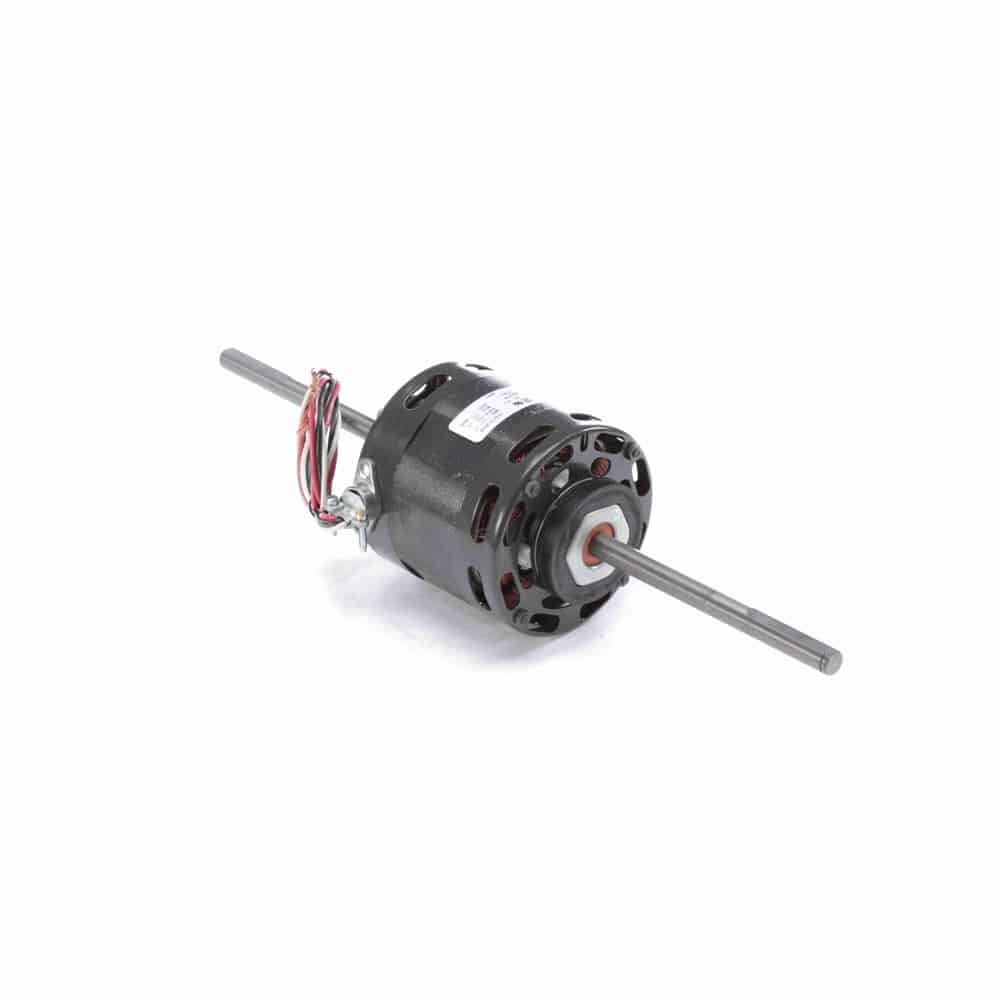

1/8-1/12HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4″ Frame, 1550 RPM, 2 Speed, Shaded Pole, 230V, OAO Enclosure
$322.57
Product Information
Brand
Fasco
Mfr #
D339
Wright's #
FAS D339
Country of Origin
MEX
Specifications
C Dim
17.02"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60 Hz
HP
0.13 HP
HP2
1/8-1/12 HP
Insulation Class
A
kW
0.1kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.0-1.4
Rated Voltage
230
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Fan Coil – Air-Conditioning – Heating Unit Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatІ” Leads
Resilient Mounting Ring Lead End and Opposite Lead End
240V
