Fasco

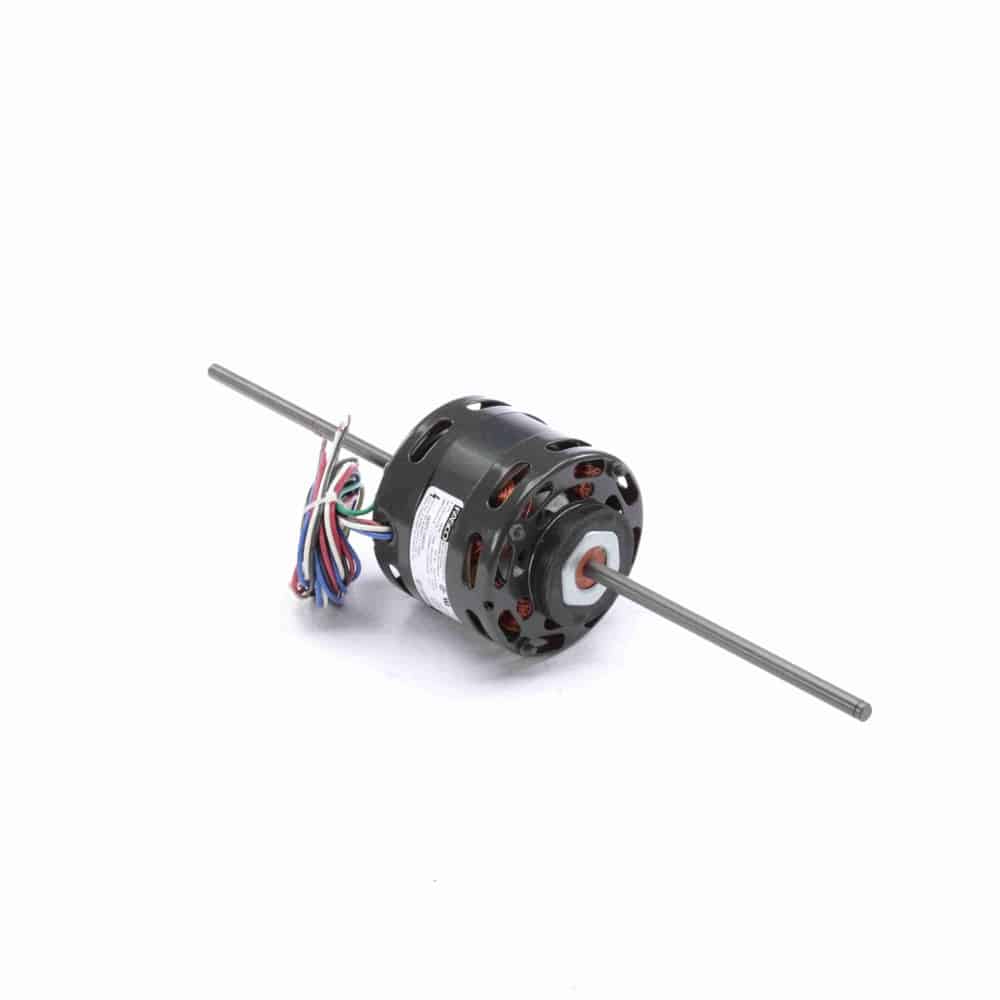

1/10HP ShP 4.4″ 3spd 1550 REV 115V DS
Mfr # D336 | Wright’s # FAS D336
1/10-1/15-1/25HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4″ Frame, 1550 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
$253.45
Product Information
Brand
Fasco
Mfr #
D336
Wright's #
FAS D336
Country of Origin
MEX
Specifications
C Dim
18.51"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10-1/15-1/25 HP
Insulation Class
A
kW
0.07kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.5-2.4-1.8
Rated Voltage
115
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
Fan Coil – Air-Conditioning – Heating Unit Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Double Shaft with FlatФ” Leads
Resilient Mounting Rings
120V
