Fasco
1/20HP ShP 4.4″ 4spd 1550 REV 115V DS
Mfr # D335 | Wright’s # FAS D335

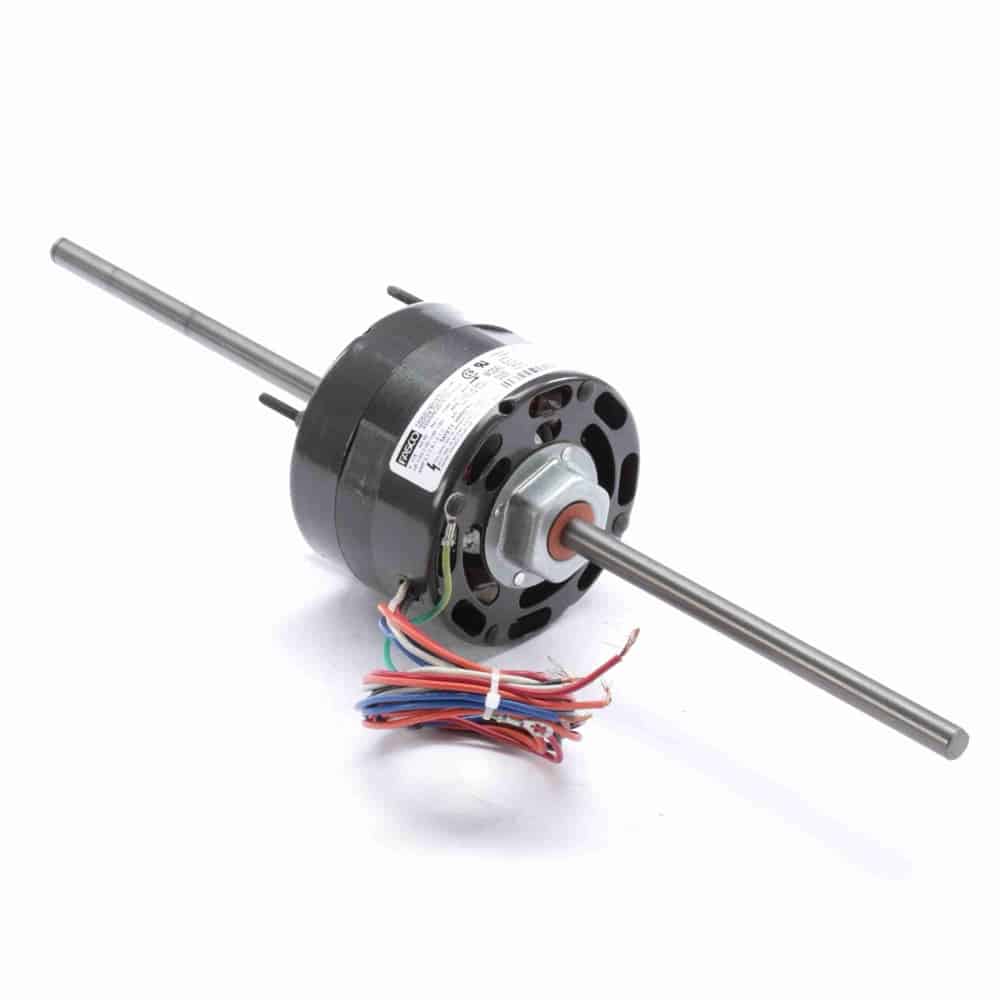

1/20-1/30-1/40-1/60HP Fan Coil & Air Conditioner Motor, 1 Phase, 4.4″ Frame, 1550 RPM, 4 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D335
Wright's #
FAS D335
Country of Origin
MEX
Specifications
C Dim
19.22"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20-1/30-1/40-1/60 HP
Insulation Class
A
kW
0.04kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
4
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.1-1.4-1.2-1.1
Rated Voltage
115
Rotation
Reversible
RPM
1550
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Fan Coil – Air-Conditioning – Heating Unit Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЍ” Leads
Extended Studs Opposite Lead End, Hex Mounting Hub Shaft End and Lead End
120V
