Fasco

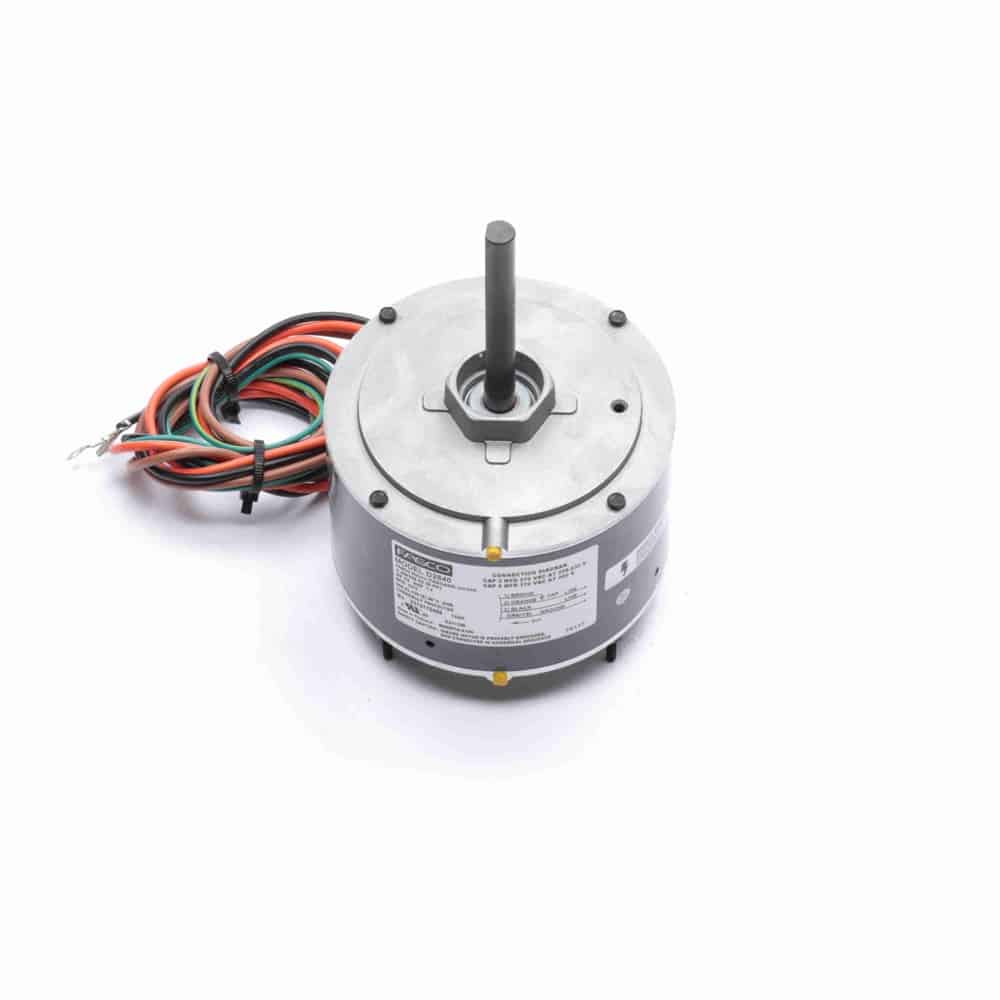

1/5HP PSC 5.6″ 1075 CWSE 208-230V 5uF
Mfr # D2840 | Wright’s # FAS D2840
1/5HP OEM Replacement Motor, 1 Phase, 5.6″ Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TE Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D2840
Wright's #
FAS D2840
Country of Origin
THA
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
TE
Frame
5.6"
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.16
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
OEM Direct Replacement Motor
5.6″ Diameter – 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 3 or 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatВ” Leads with Flag Terminal
Extended Mounting Studs Lead End, Hex Mounting Hub Shaft End, Shell Mounting Holes
