Fasco

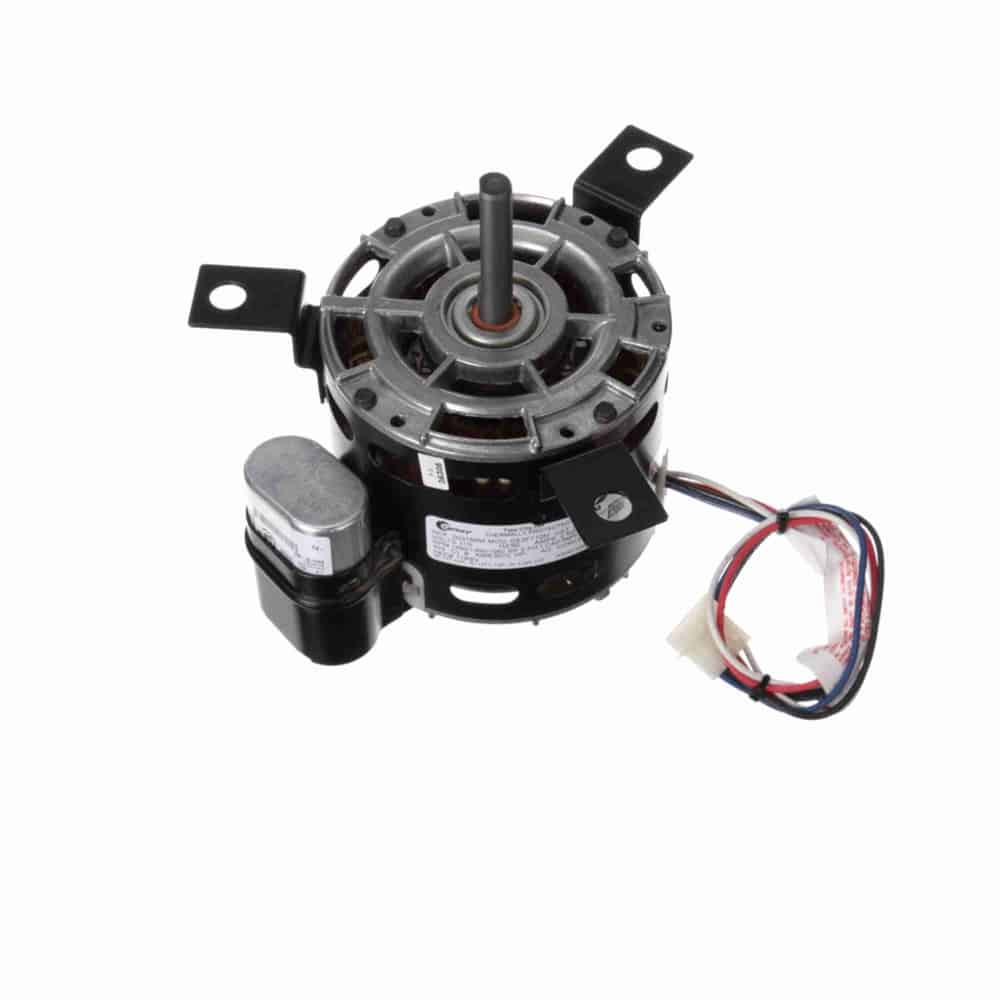

1/10HP PSC 5″ 3spd 1050 CCWSE 277V 4uF-inc DS
Mfr # D277A | Wright’s # FAS D277A
1/10,1/12,1/20HP Fan Coil & Air Conditioner Motor, 1 Phase, 5″ Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 277V, OAO Enclosure
$280.23
Product Information
Brand
Fasco
Mfr #
D277A
Wright's #
FAS D277A
Country of Origin
MEX
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10,1/12,1/20 HP
Insulation Class
B
kW
0.07kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
0.65,0.4,0.3
Rated Voltage
277
Rotation
Clockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Fan Coil – Air-Conditioning – Heating Unit Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Double Shaft with FlatІ” Leads
Resilient Mounting Ring Lead End and Opposite Lead End
