Fasco

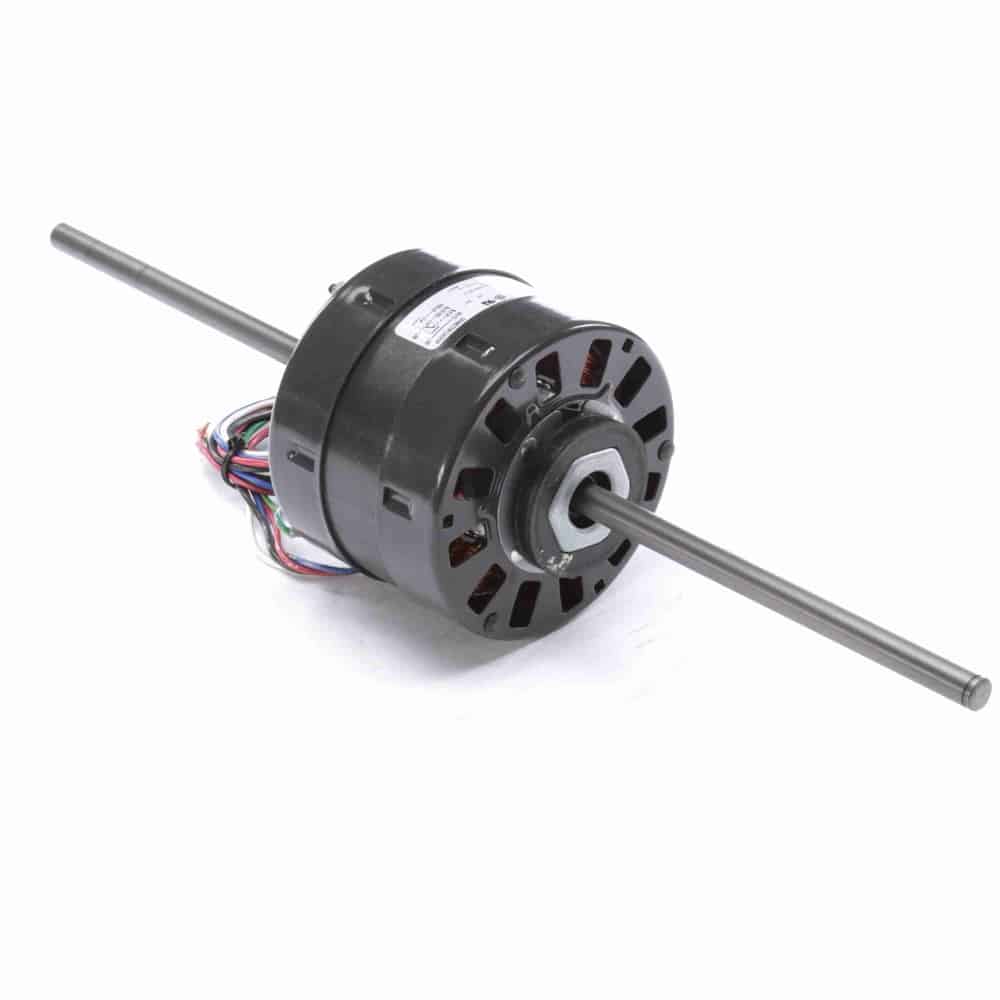

1/10HP ShP 5″ 3spd 1050 CCWSE 115V DS
Mfr # D256 | Wright’s # FAS D256
1/10-1/20-1/30HP Fan Coil & Air Conditioner Motor, 1 Phase, 5″ Frame, 1050 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D256
Wright's #
FAS D256
Country of Origin
MEX
Specifications
C Dim
20.02"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10-1/20-1/30 HP
Insulation Class
A
kW
0.07kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.4-1.8-1.1
Rated Voltage
115
Rotation
Clockwise Lead End
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Fan Coil – Air-Conditioning – Heating Unit Motor
5″ Diameter – 42 Frame
Shaded Pole
Thermally Protected
Open Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Double Shaft with FlatЌ” Leads with .5″ Strip
Resilient Mounting Ring Lead End and Opposite Lead End
120V
