Fasco

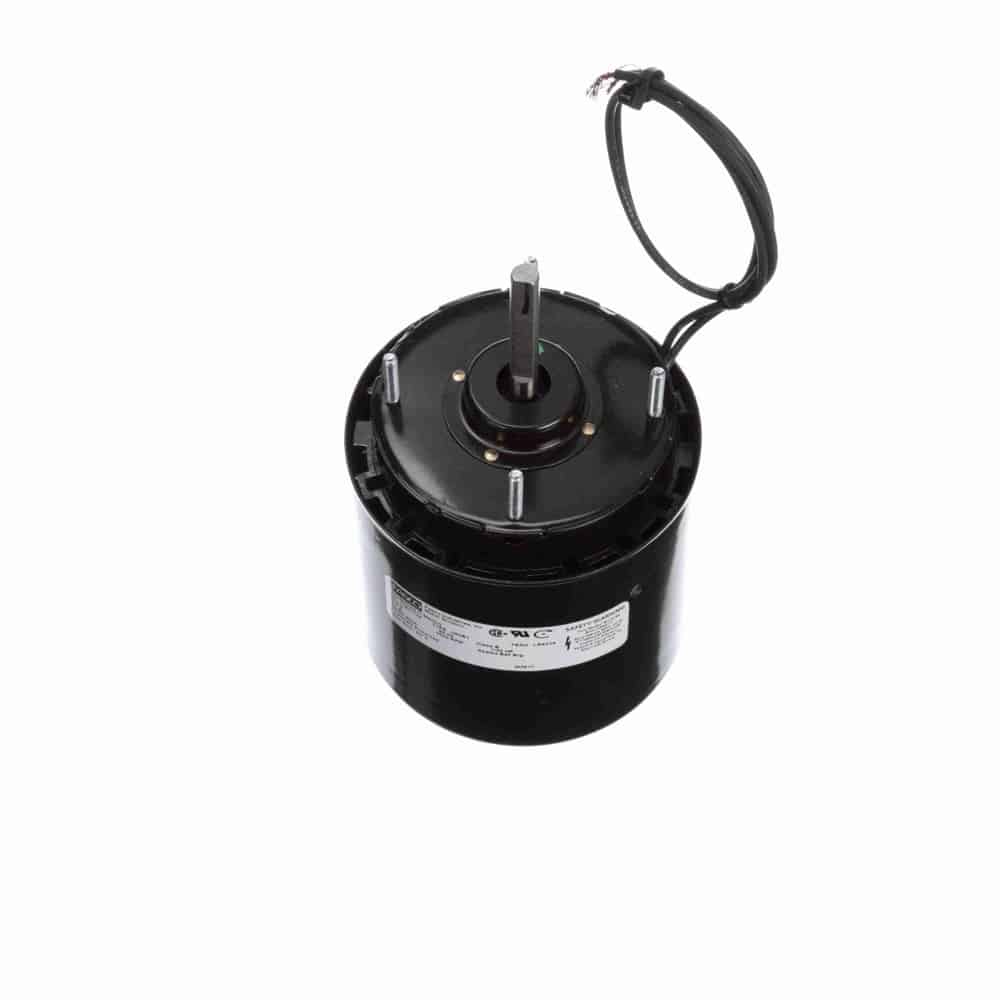

1/20HP ShP 3.3″ 1500 CWSE 115V BM
Mfr # D226 | Wright’s # FAS D226
1/20HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D226
Wright's #
FAS D226
Country of Origin
MEX
Specifications
C Dim
6.98"
Electrical Type
Shaded Pole
Enclosure
TEFC
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.70
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1500
Shaft Diameter
0.312"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Fan Cooled, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End
120V
