Fasco

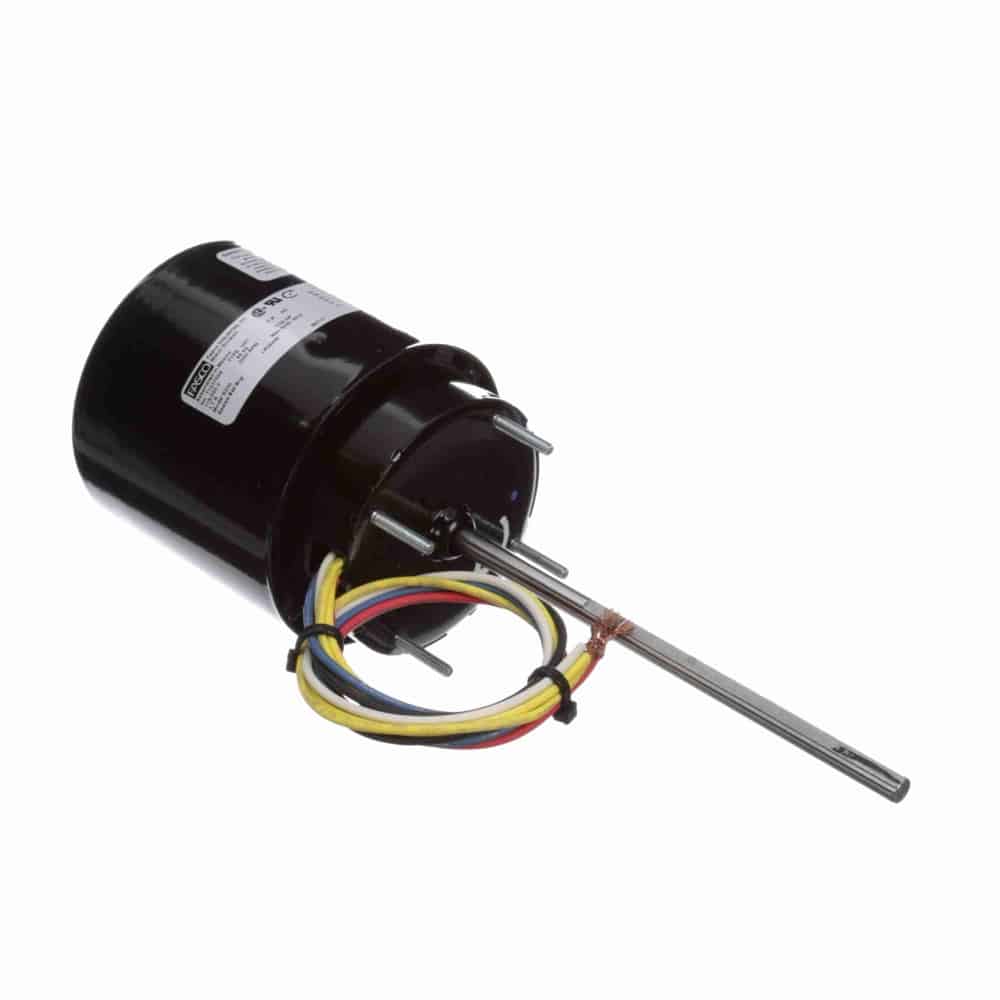

1/20HP ShP 3.3″ 3000 CWSE 115/230V BM

Name: 1/20HP ShP 3.3" 3000 CWSE 115/230V BM
Brand: Fasco
SKU: 29215
Price: 214.69 USD
Availability: InStock

Mfr # D220 | Wright’s # FAS D220

1/20HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure

$214.69

Product Information

Brand Fasco

Mfr # D220

Wright's # FAS D220

Country of Origin MEX

Specifications

C Dim 11.25"

Electrical Type Shaded Pole

Enclosure TEFC

Full Load Efficiency 32

Frame 3.3"

Frequency 60 Hz

HP 0.05 HP

HP2 1/20 HP

Insulation Class B

kW 0.04kW

Material Steel

Max Ambient 40°C

Number of Poles 2

Number of Speeds 1

Overload Protection Thermally Protected

Phase 1

Rated Current 1.7

Rated Voltage 115/230

Rotation Clockwise Shaft End

RPM 3000

Service Factor 1

Shaft Diameter 0.312"

Starting Method

Description

General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Fan Cooled, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End

Documents

Data Sheet

1/20HP ShP 3.3″ 3000 CWSE 115/230V BM
