Fasco

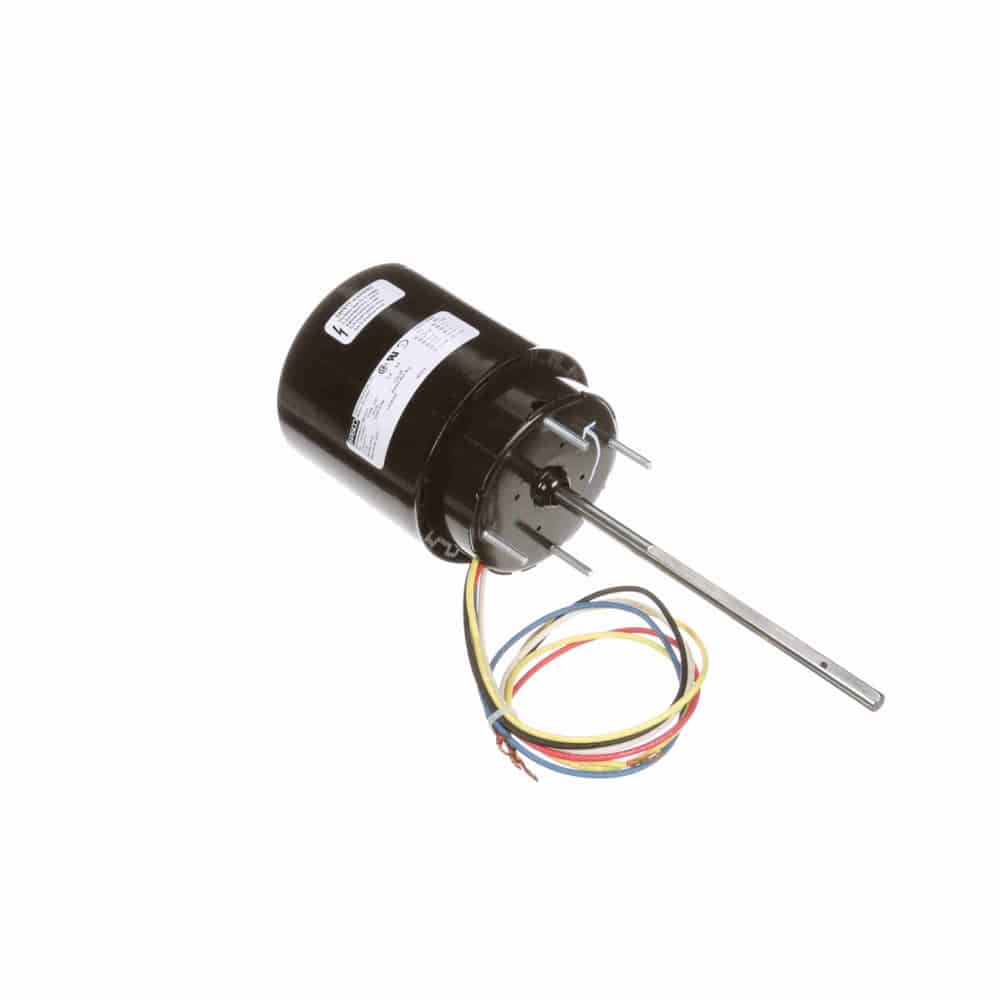

1/20HP ShP 3.3″ 3000 CCWSE 115/230V BM
Mfr # D215 | Wright’s # FAS D215
1/20HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D215
Wright's #
FAS D215
Country of Origin
MEX
Specifications
C Dim
11.23"
Electrical Type
Shaded Pole
Enclosure
TEFC
Full Load Efficiency
35
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.7
Rated Voltage
115/230
Rotation
Counterclockwise Shaft End
RPM
3000
Shaft Diameter
0.312"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed Fan Cooled, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End
