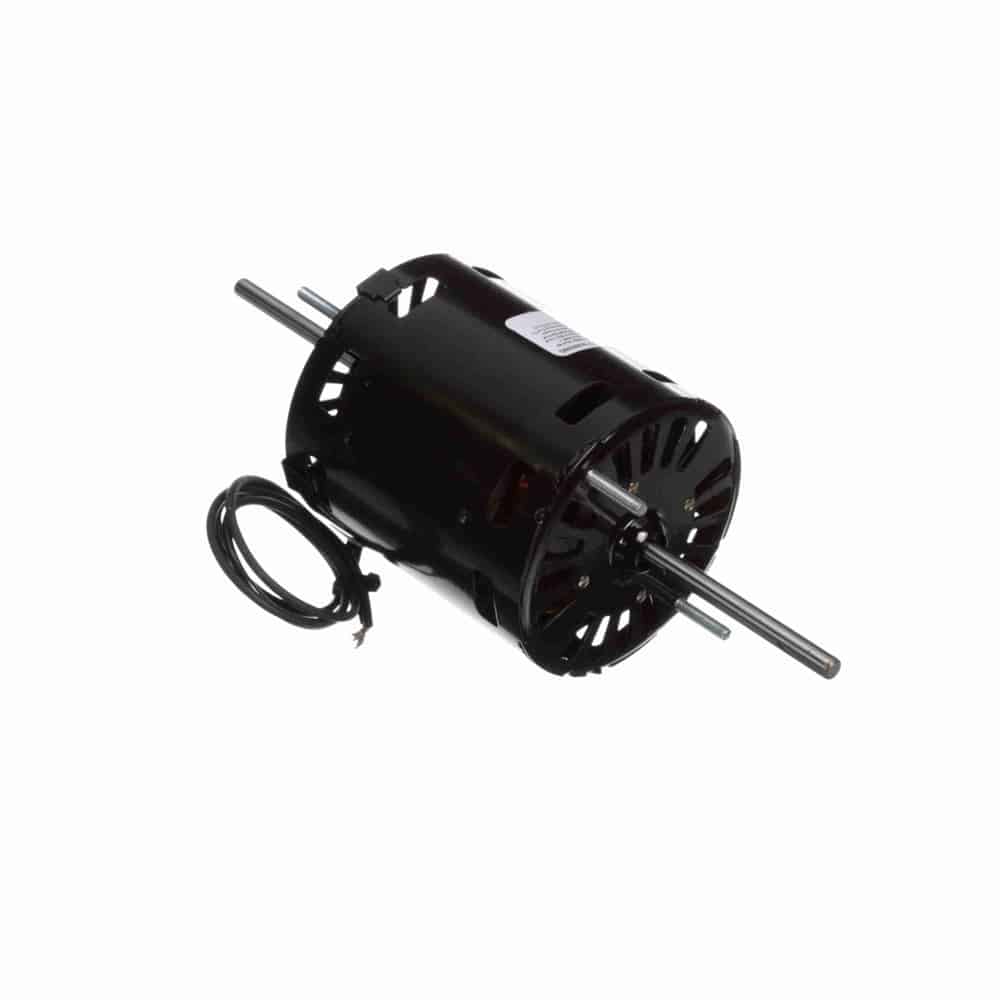

Fasco
1/16HP ShP 3.3″ 3000 CCWSE 115V DS BM
Mfr # D213 | Wright’s # FAS D213
1/16HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$136.52
Product Information
Brand
Fasco
Mfr #
D213
Wright's #
FAS D213
Country of Origin
MEX
Specifications
C Dim
9.39"
Electrical Type
Shaded Pole
Enclosure
OAO
Full Load Efficiency
32
Frame
3.3"
Frequency
60 Hz
HP
0.06 HP
HP2
1/16 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.1
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
3000
Shaft Diameter
0.25"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Double Shaft with Flatϴ” Leads
Extended Studs Lead End and Opposite Lead End
120V
