Fasco

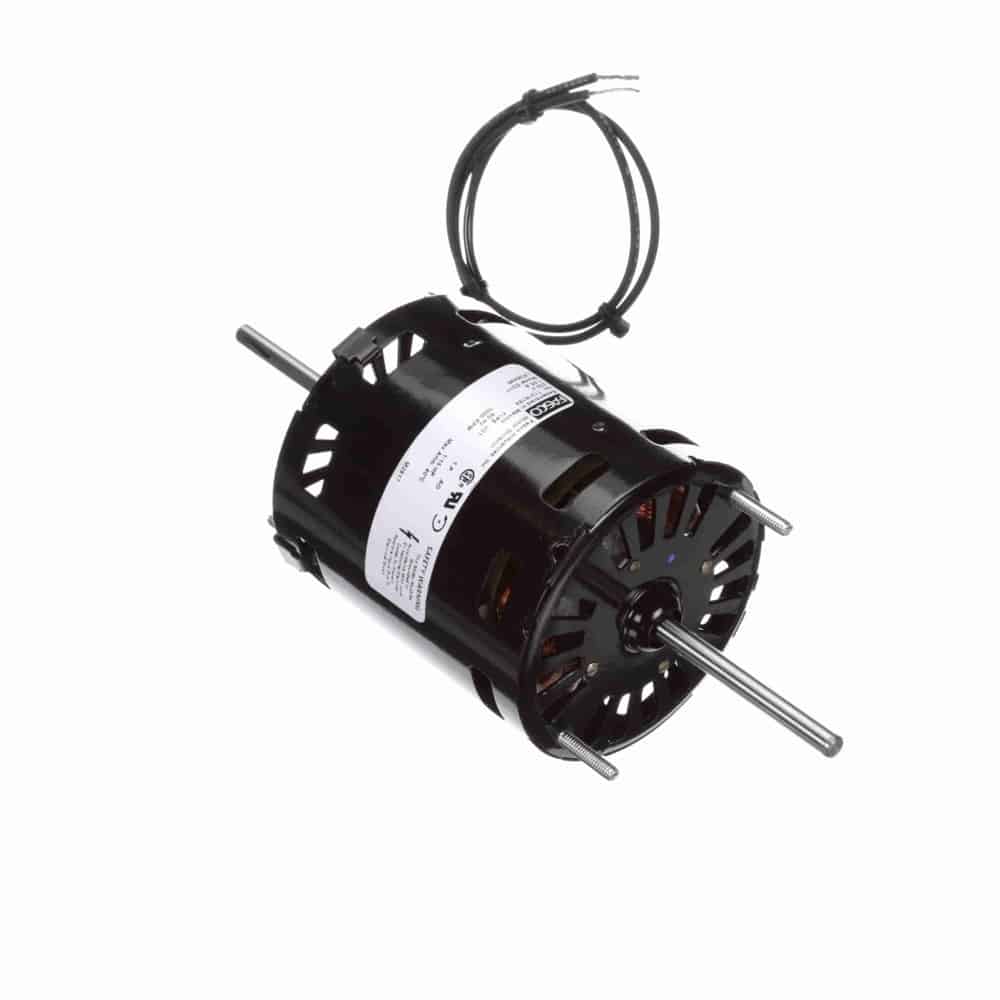

1/15HP ShP 3.3″ 3000 CCWSE 230V DS BM

Name: 1/15HP ShP 3.3" 3000 CCWSE 230V DS BM
Brand: Fasco
SKU: 29208
Price: 133.28 USD
Availability: OutOfStock

Mfr # D211 | Wright’s # FAS D211

1/15HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 230V, OAO Enclosure

Product Information

Brand Fasco

Mfr # D211

Wright's # FAS D211

Country of Origin MEX

Specifications

Electrical Type Shaded Pole

Enclosure OAO

Frame 3.3"

Frequency 60 Hz

HP 0.07 HP

HP2 1/15 HP

Insulation Class B

kW 0.05kW

Material Steetl

Max Ambient 40°C

Number of Poles 2

Number of Speeds 1

Overload Protection Thermally Protected

Phase 1

Rated Current 1.05

Rated Voltage 230

Rotation Clockwise Lead End

RPM 3000

Service Factor 1

Shaft Diameter 0.25"

Starting Method

Description

General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Double Shaft with Flatϴ” Leads
Extended Studs Lead End and Opposite Lead End
240V

Documents

Data Sheet

1/15HP ShP 3.3″ 3000 CCWSE 230V DS BM
