Fasco

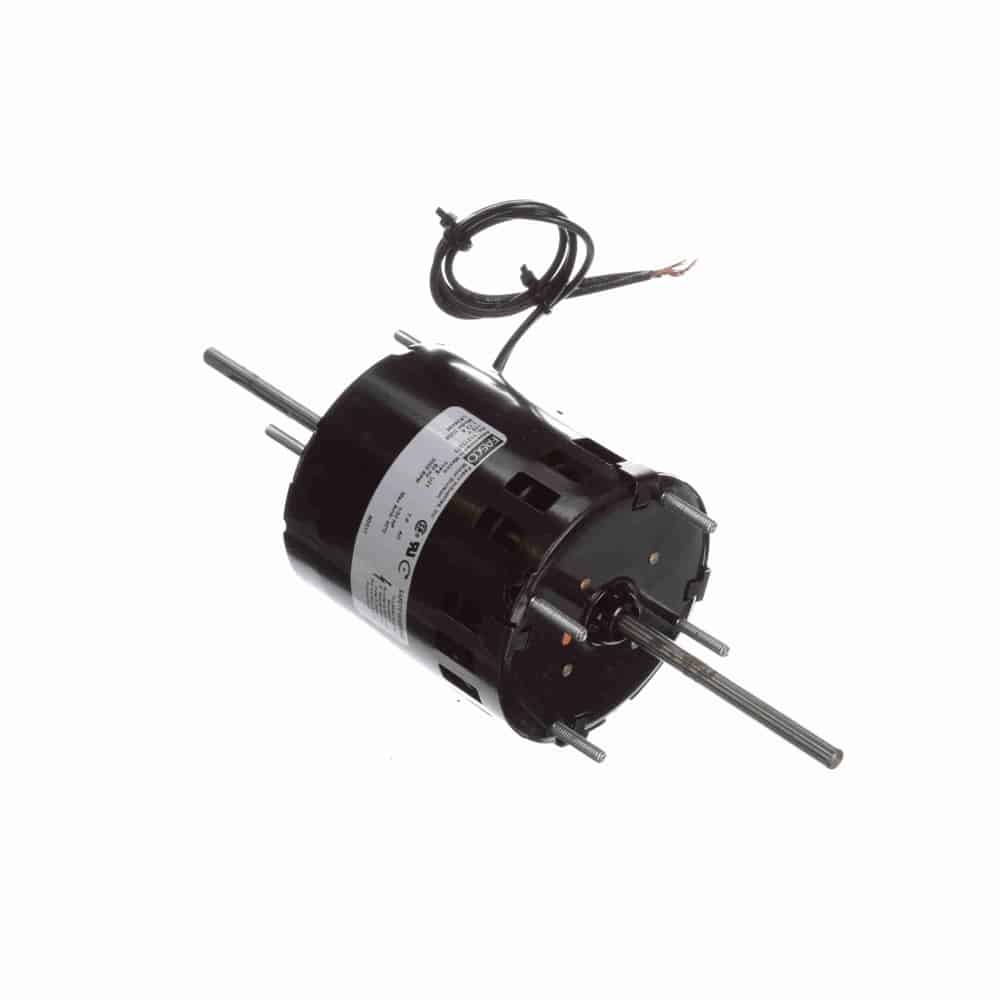

1/30HP ShP 3.3″ 3000 CWSE 115V DS BM
Mfr # D209 | Wright’s # FAS D209
1/30HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$114.20
Product Information
Brand
Fasco
Mfr #
D209
Wright's #
FAS D209
Country of Origin
MEX
Specifications
C Dim
10.2"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/30 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.12
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
3000
Service Factor
1
Shaft Diameter
0.25"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Double Shaft with Flatϴ” Leads
Extended Studs Lead End and Opposite Lead End
120V
