Fasco

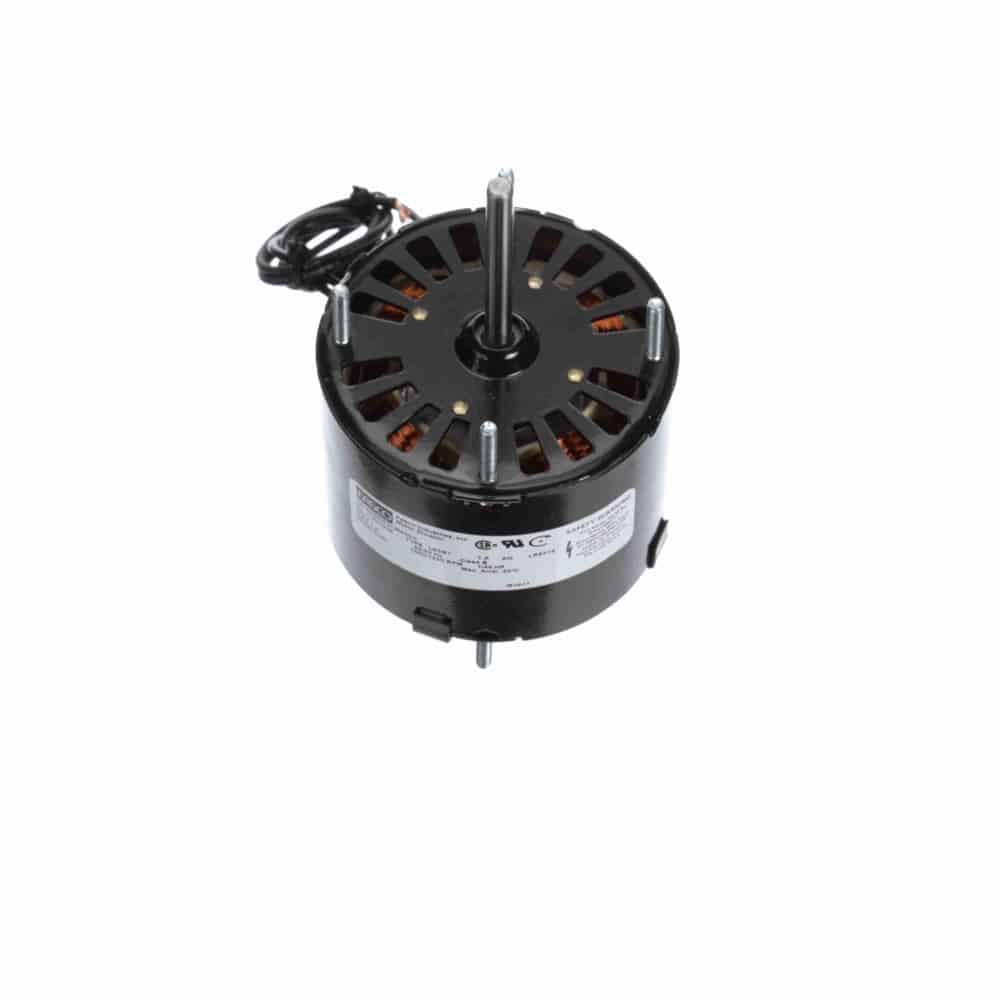

1/40HP ShP 3.3″ 1500 CWSE 230V BM
Mfr # D190 | Wright’s # FAS D190
1/40HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Fasco
Mfr # D190
Wright's # FAS D190
Country of Origin MEX
Specifications
C Dim 5.16"
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3"
Frequency 50 Hz
HP 0.03 HP
HP2 1/40 HP
Insulation Class B
kW 0.02kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.60/0.70
Rated Voltage 230
Rotation Clockwise Shaft End
RPM 1500
Shaft Diameter 0.25"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End
240V
