Fasco

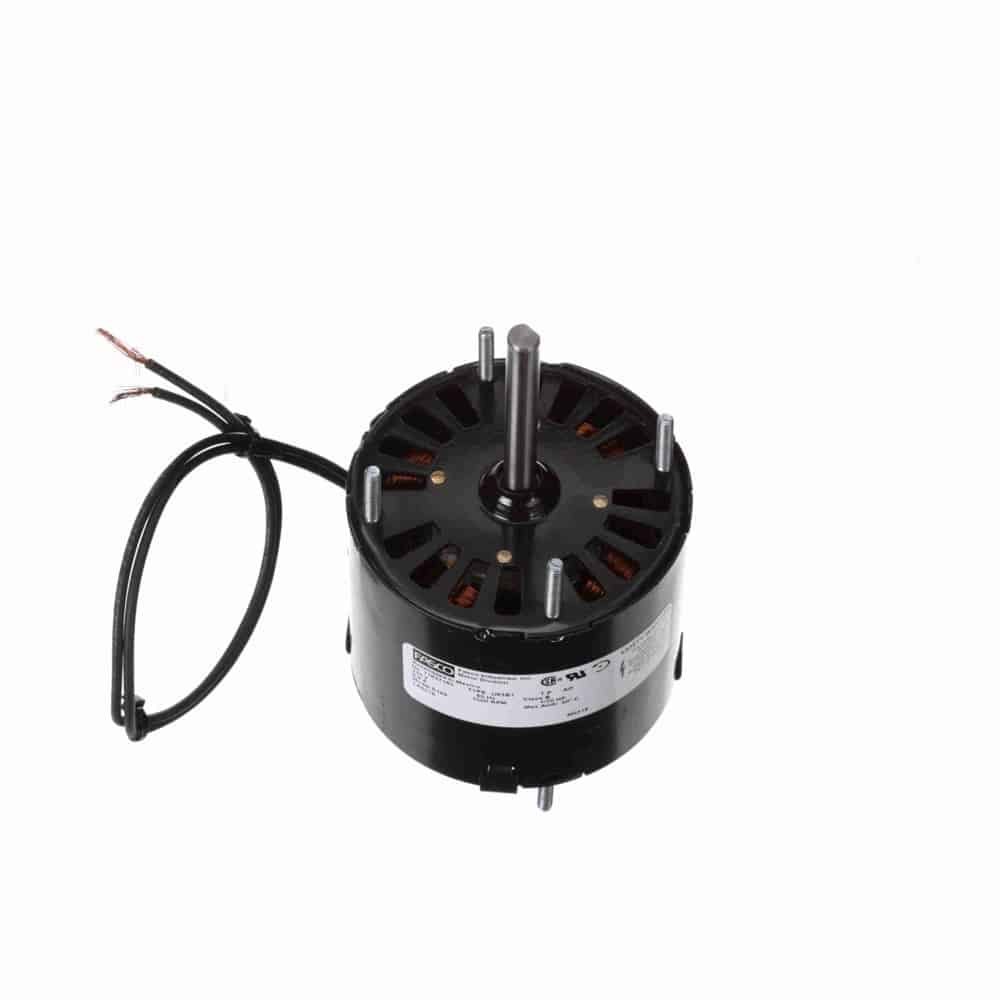

1/20HP ShP 3.3″ 1500 CCWSE 230V BM
Mfr # D189 | Wright’s # FAS D189
1/20HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 230V, OAO Enclosure
$83.89
Product Information
Brand Fasco
Mfr # D189
Wright's # FAS D189
Country of Origin MEX
Specifications
C Dim 5.43"
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3"
Frequency 60 Hz
HP 0.05 HP
HP2 1/20 HP
Insulation Class B
kW 0.04kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.90
Rated Voltage 230
Rotation Counterclockwise Shaft End
RPM 1500
Service Factor 1
Shaft Diameter 0.313"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End
240V
