Fasco

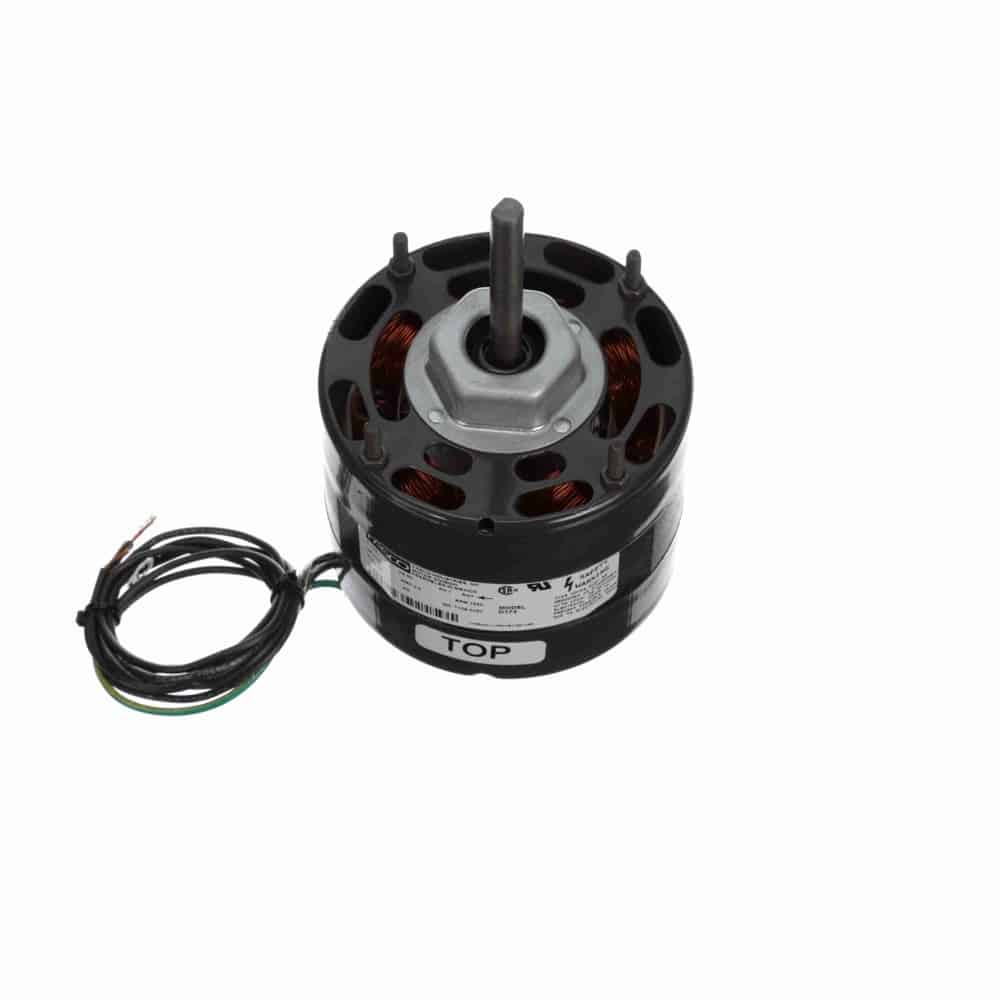

1/10HP ShP 4.4″ 1500 CWSE 115V BM
Mfr # D174 | Wright’s # FAS D174
1/10HP Fan & Blower Motor, 1 Phase, 4.4″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$229.12
Product Information
Brand
Fasco
Mfr #
D174
Wright's #
FAS D174
Country of Origin
MEX
Specifications
C Dim
6.99"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
A
kW
0.07kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.5
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1500
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
General Purpose Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class A Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End
120V
