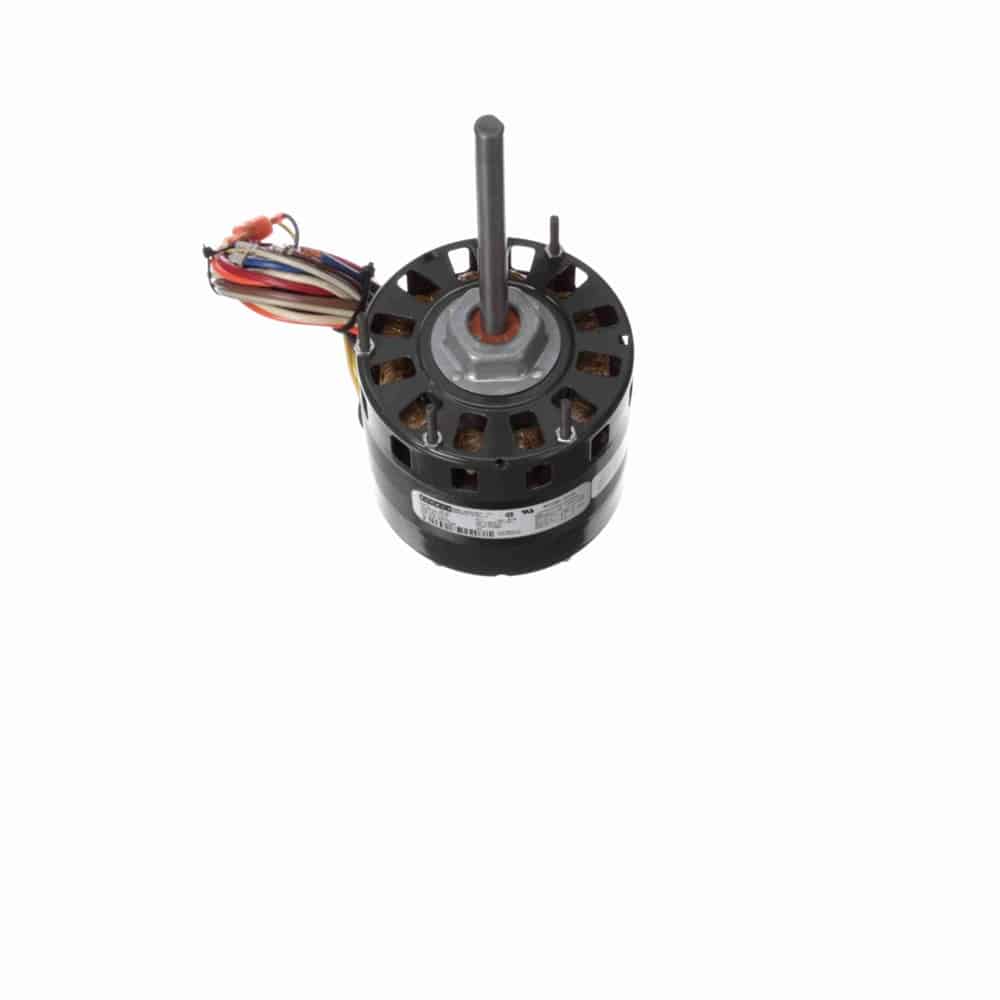

Fasco
1/4HP PSC 5″ 4spd 1050 REV 277V 5uF BM
Mfr # D152 | Wright’s # FAS D152
1/4-1/5-1/6-1/8HP Fan & Blower Motor, 1 Phase, 5″ Frame, 1050 RPM, 4 Speed, Permanent Split Capacitor, 277V, OAO Enclosure
$362.37
Product Information
Brand
Fasco
Mfr #
D152
Wright's #
FAS D152
Specifications
C Dim
10.97"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4-1/5-1/6-1/8 HP
Insulation Class
B
kW
0.19kW
Max Ambient
40°C
Number of Poles
6
Number of Speeds
4
Overload Protection
Automatic
Phase
1
Rated Current
1.6/1.1/0.9/0.7
Rated Voltage
277
Rotation
Reversible
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Direct Drive Blower Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Studs Shaft End, Belly Band Mount (Belly Band Not Included)
