Fasco

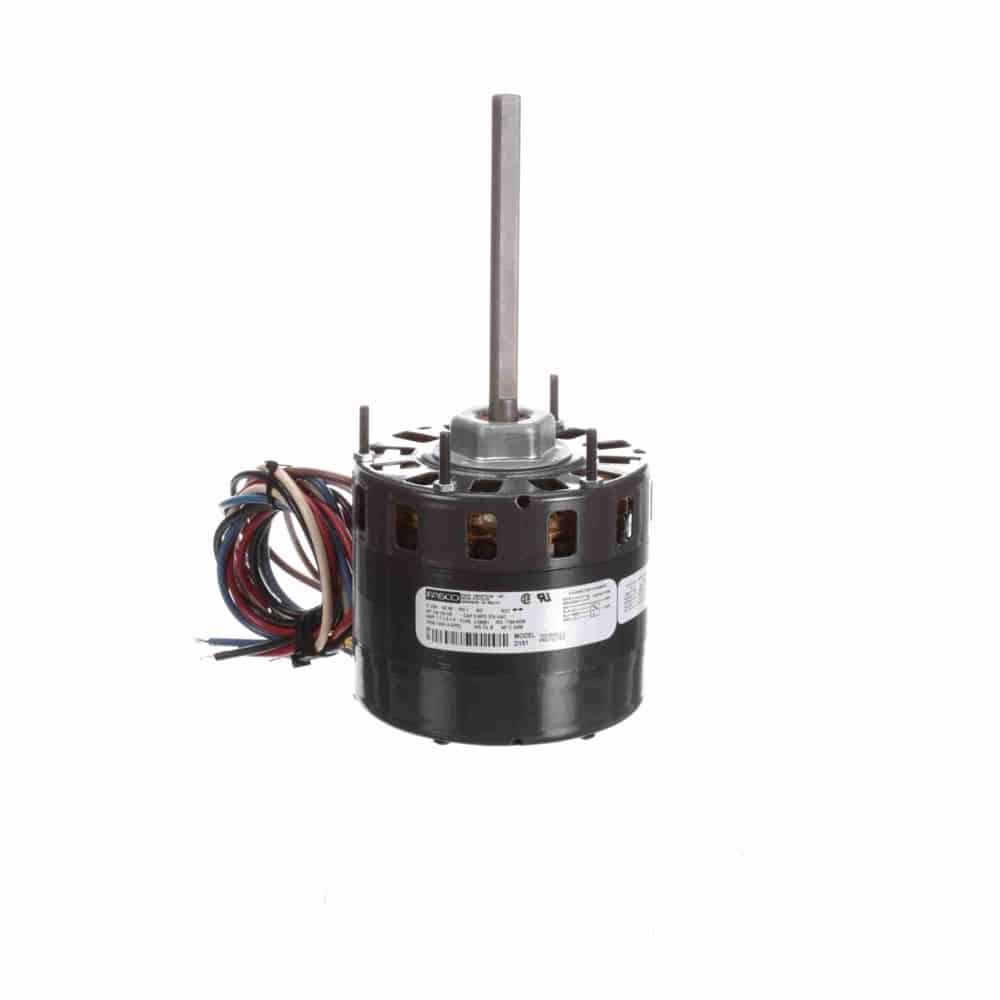

1/4HP PSC 5″ 3spd 1050 REV 230V 5uF BM
Mfr # D151A | Wright’s # FAS D151A
1/4,1/5,1/6HP Fan & Blower Motor, 1 Phase, 5″ Frame, 1050 RPM, 3 Speed, Permanent Split Capacitor, 230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D151A
Wright's #
FAS D151A
Country of Origin
MEX
Specifications
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
5"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4,1/5,1/6 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
1.7,1.2,0.95
Rated Voltage
230
Rotation
Reversible
RPM
1050
Service Factor
1
Shaft Diameter
0.5"
Starting Method
Description
Direct Drive Blower Motor
5″ Diameter – 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Studs Shaft End, Belly Band Mount (Belly Band Not Included)
240V
