Fasco

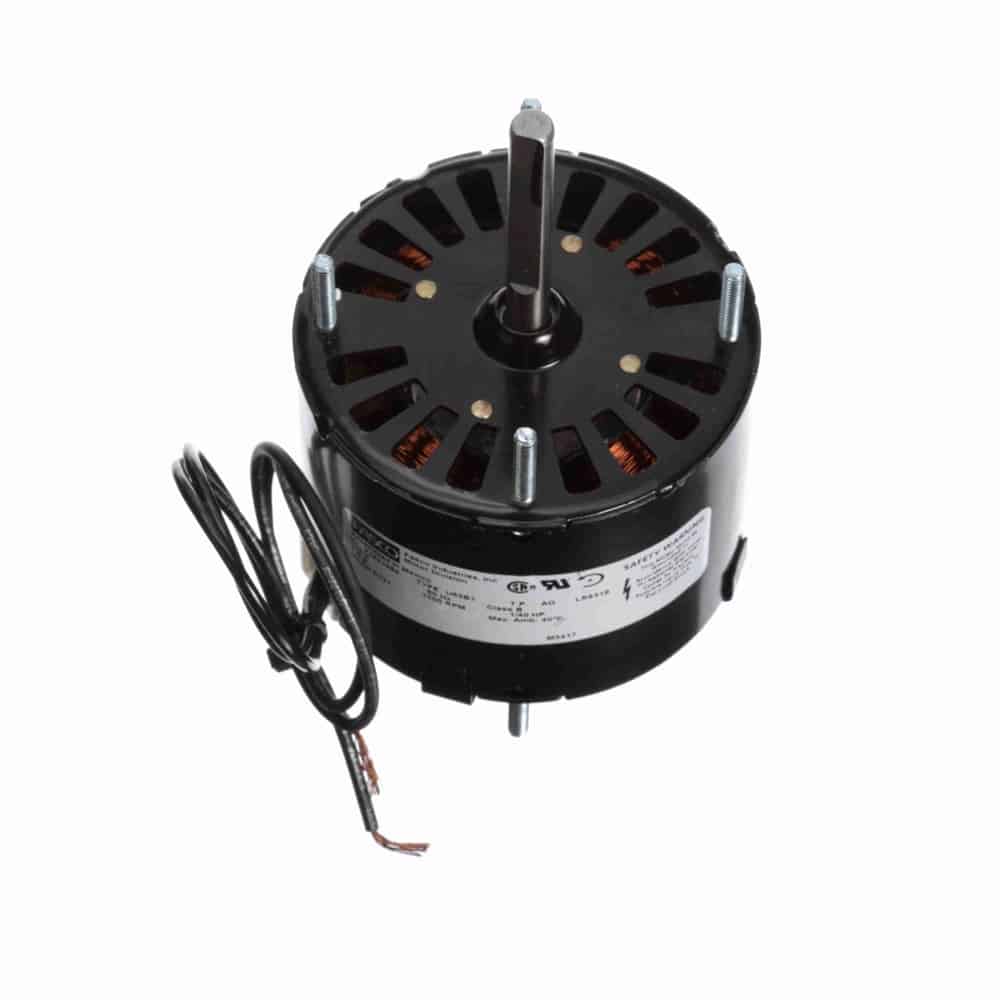

1/40HP ShP 3.3″ 1500 CCWSE 115V BM
Mfr # D127 | Wright’s # FAS D127
1/40HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D127
Wright's #
FAS D127
Country of Origin
MEX
Specifications
C Dim
5.08"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/40 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.0
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1500
Shaft Diameter
0.313"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)
120V
