Fasco

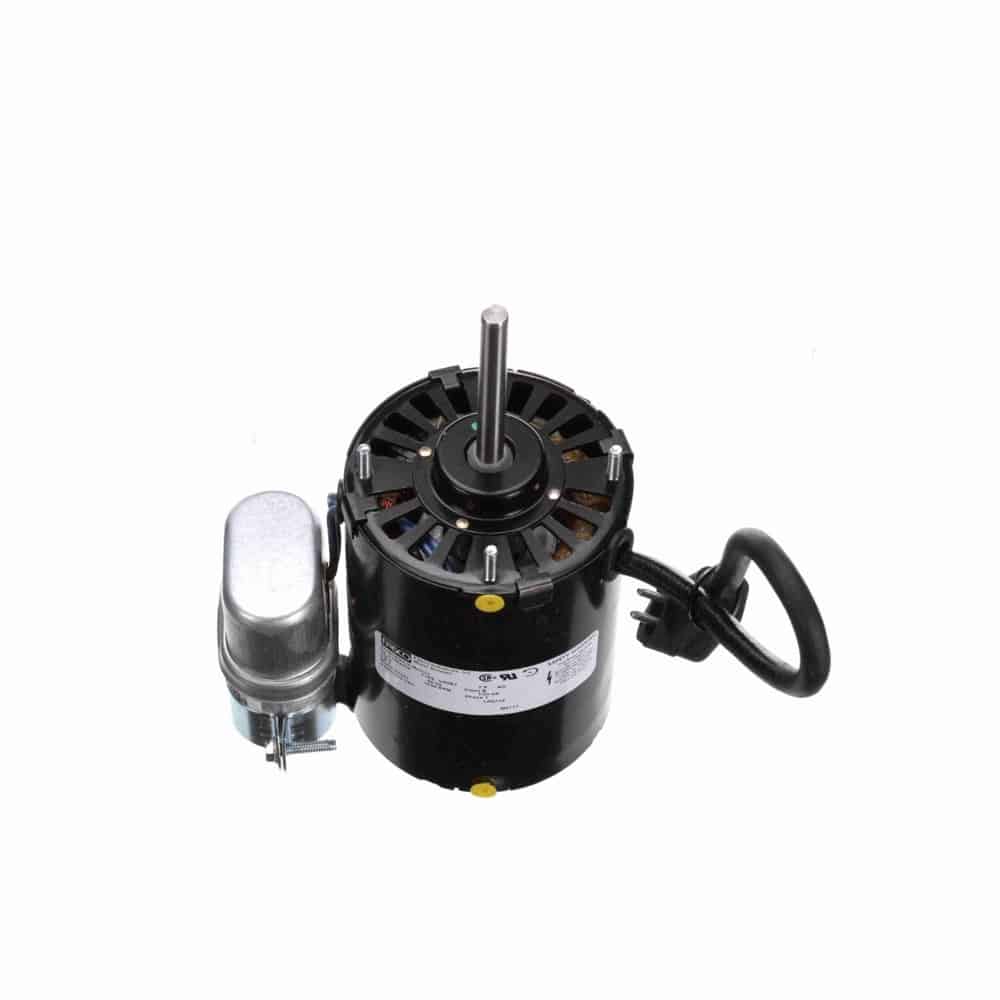

1/20HP PSC 3.3″ 1550 CCWSE 115V 4uF-inc
Mfr # D1243 | Wright’s # FAS D1243
1/20HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$186.72
Product Information
Brand
Fasco
Mfr #
D1243
Wright's #
FAS D1243
Country of Origin
MEX
Specifications
C Dim
7.51"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.05 HP
HP2
1/20 HP
Insulation Class
B
kW
0.04kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.8
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϳ” Leads with Molded Plug
Extended Studs Shaft End
120V
