Fasco
1/40HP ShP 3.3″ 3000 CCWSE 115V
Mfr # D1192 | Wright’s # FAS D1192

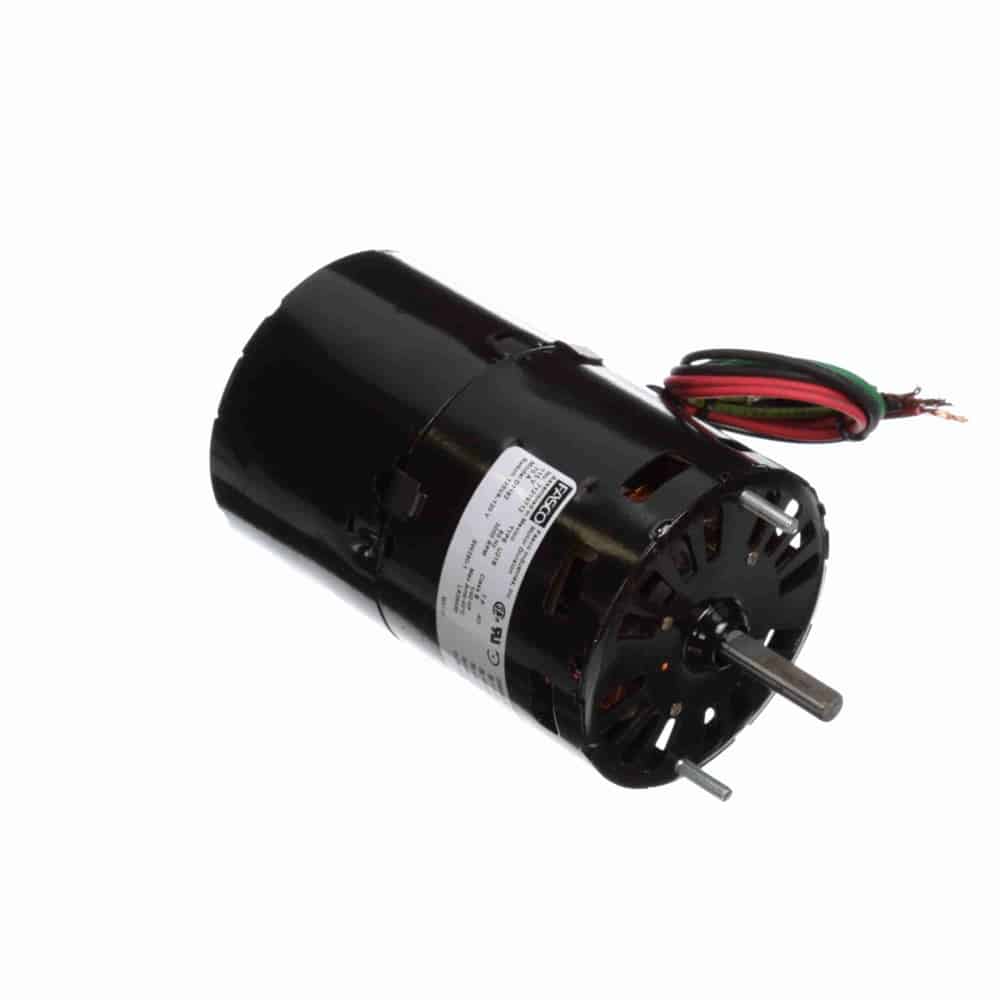

1/40HP Draft Inducer Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1192
Wright's #
FAS D1192
Country of Origin
MEX
Specifications
C Dim
6.88"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/40 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.70
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
3000
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
Draft Inducer Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End End-Frame and Shell, Enclosed Lead End End-Frame and Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatl” Leads
Extended Studs Shaft End
120V
