Fasco

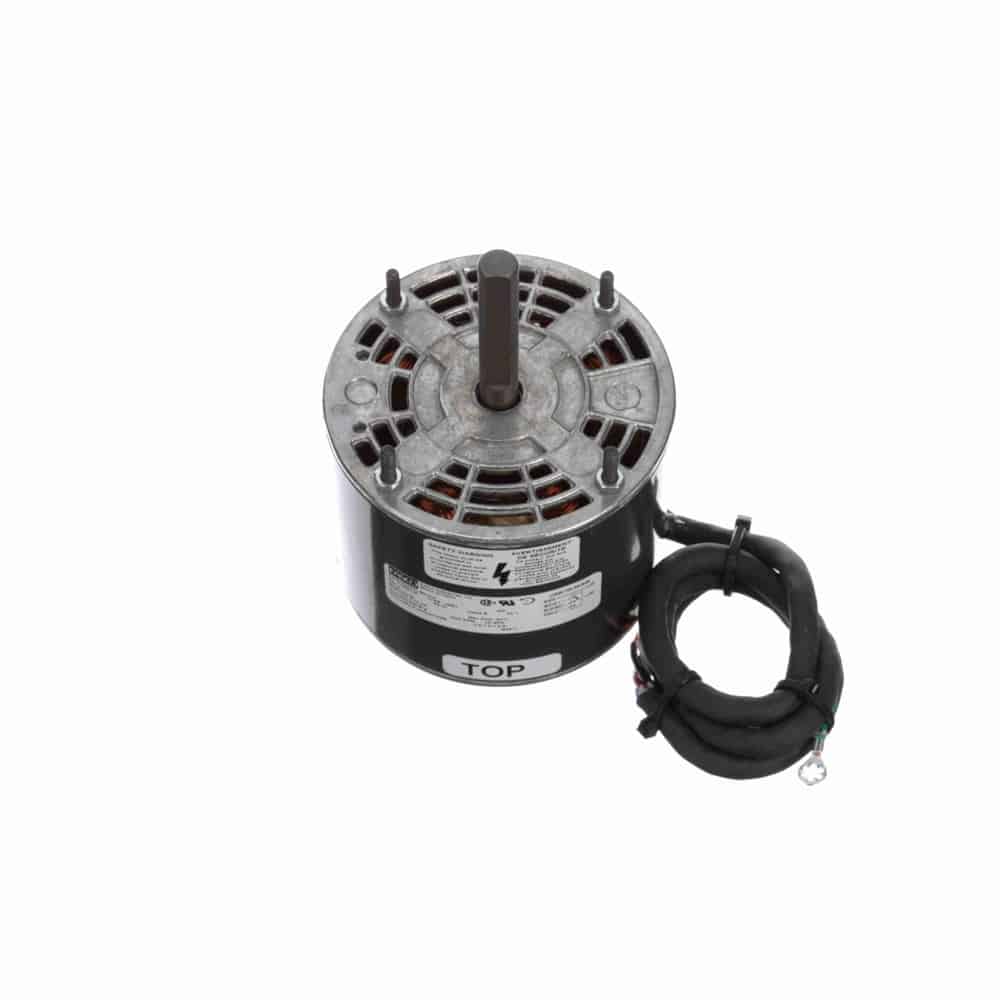

1/11HP ShP 4.4″ 3spd 1500 CCWSE 115V BM
Mfr # D119 | Wright’s # FAS D119
1/11-1/25-1/70HP Fan & Blower Motor, 1 Phase, 4.4″ Frame, 1500 RPM, 3 Speed, Shaded Pole, 115V, OAO Enclosure
$188.42
Product Information
Brand Fasco
Mfr # D119
Wright's # FAS D119
Country of Origin MEX
Specifications
C Dim 6.36"
Electrical Type Shaded Pole
Enclosure OAO
Frame 4.4"
Frequency 60 Hz
HP 0.09 HP
HP2 1/11-1/25-1/70 HP
Insulation Class B
kW 0.07kW
Material Rolled Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 3
Overload Protection Thermally Protected
Phase 1
Rated Current 2.9-1.5-1.0
Rated Voltage 115
Rotation Counterclockwise Shaft End
RPM 1500
Service Factor 1
Shaft Diameter 0.5"
Starting Method
Description
General Purpose Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2″ Diameter Shaft with FlatІ” Leads
Extended Studs Shaft End
120V
