Fasco

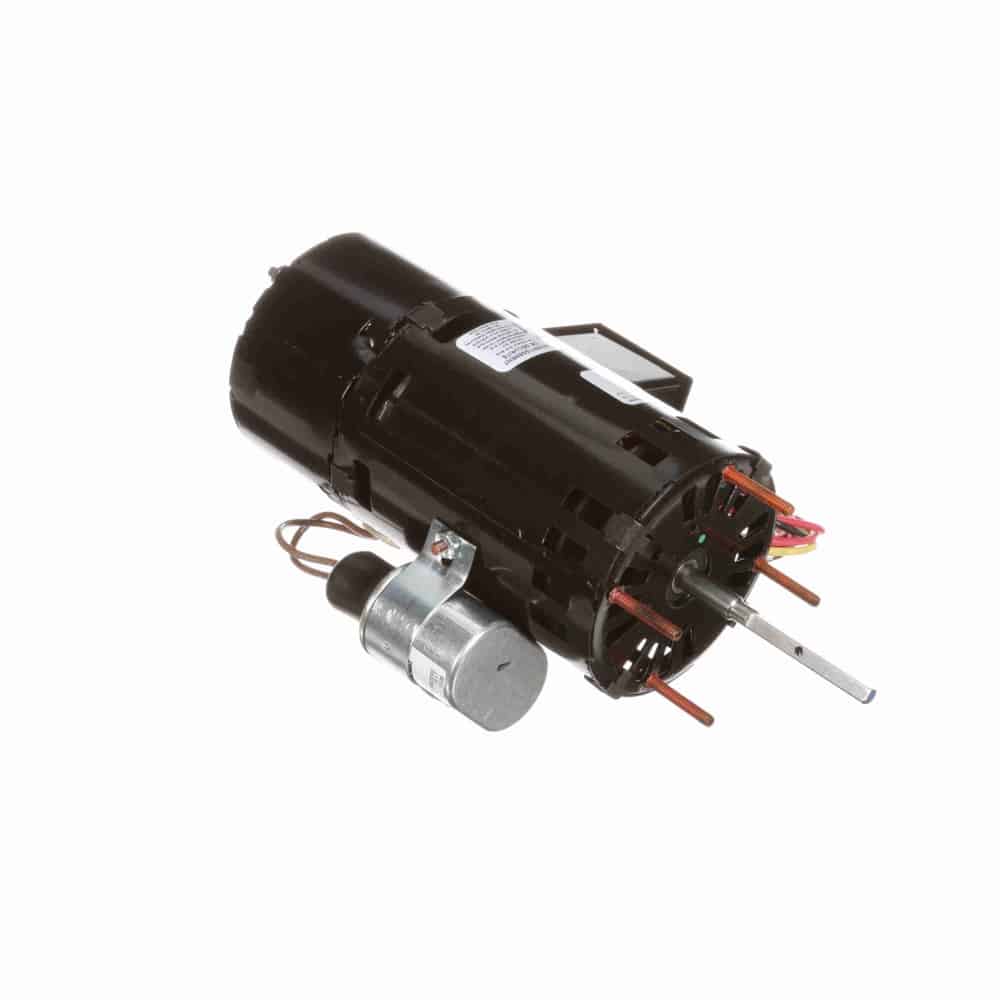

1/15HP PSC 3.3″ 3450 CWSE 208-230V 4uF
Mfr # D1178 | Wright’s # FAS D1178
1/15HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 3450 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
$239.11
Product Information
Brand
Fasco
Mfr #
D1178
Wright's #
FAS D1178
Country of Origin
MEX
Specifications
C Dim
9.82"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.5
Rated Voltage
208-230
Rotation
Clockwise Shaft End
RPM
3450
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame and Shell, Enclosed Opposite Shaft End End-Frame, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϴ” Leads
Extended Studs Shaft End
