Fasco

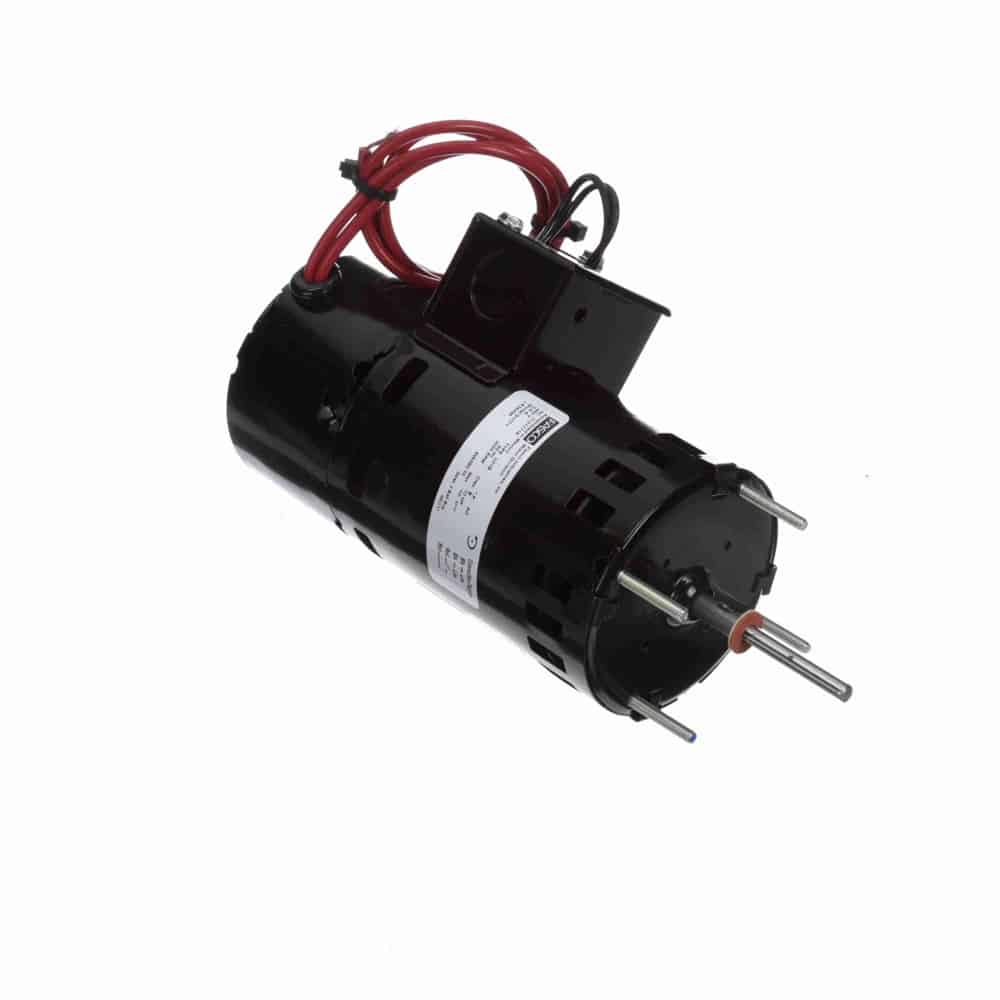

1/12HP ShP 3.3″ 3000 CCWSE 460V
Mfr # D1171 | Wright’s # FAS D1171
1/12HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 460V, OAO Enclosure
$276.14
Product Information
Brand Fasco
Mfr # D1171
Wright's # FAS D1171
Country of Origin MEX
Specifications
C Dim 9.69"
Electrical Type Shaded Pole
Enclosure OAO
Frame 3.3"
Frequency 60 Hz
HP 0.08 HP
HP2 1/12 HP
Insulation Class B
kW 0.06kW
Material Steel
Max Ambient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.60
Rated Voltage 460
Rotation Counterclockwise Shaft End
RPM 3000
Service Factor 1
Shaft Diameter 0.25"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/4″ Diameter Shaft with Flat
Conduit Box, 15″ Switch Leads
Mounting Plate Shaft End
