Fasco

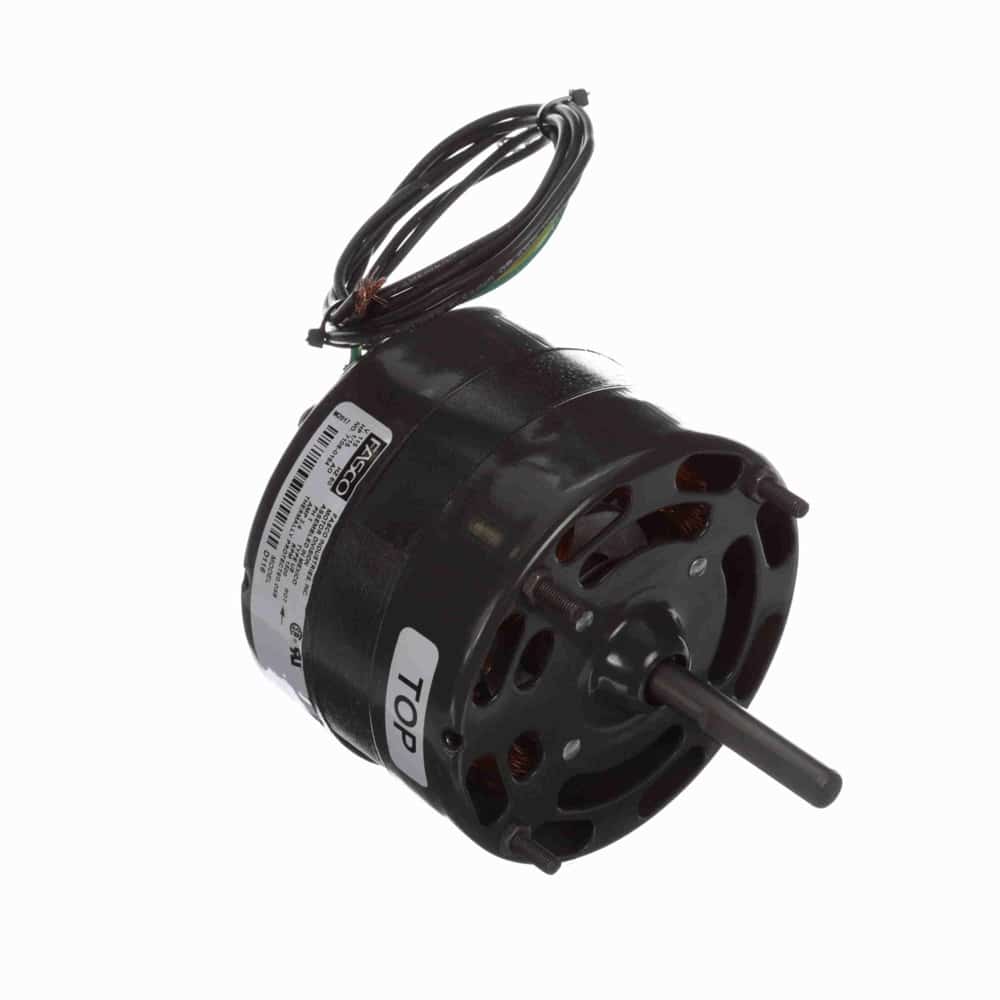

1/15HP ShP 4.4″ 1500 CWSE 115V BM
Mfr # D116 | Wright’s # FAS D116
1/15HP Fan & Blower Motor, 1 Phase, 4.4″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$178.18
Product Information
Brand
Fasco
Mfr #
D116
Wright's #
FAS D116
Country of Origin
MEX
Specifications
C Dim
5.97"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
4.4"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
A
kW
0.05kW
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.4
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1500
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
General Purpose Motor
4.4″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with FlatЃ” Leads
Extended Studs Shaft End
120V
