Fasco

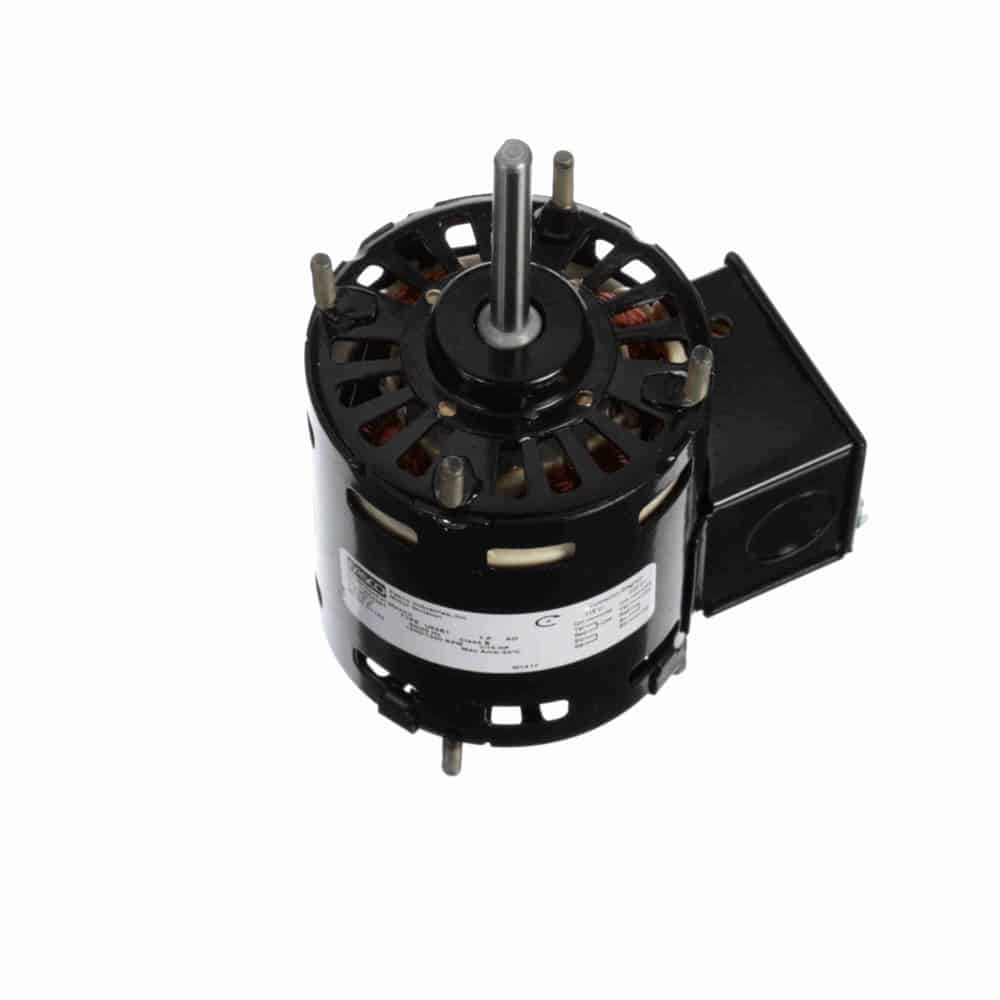

1/15HP ShP 3.3″ 1500 CWSE 115/230V
Mfr # D1142 | Wright’s # FAS D1142
1/15HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1500 RPM, 1 Speed, Shaded Pole, 115/230V, OAO Enclosure
$148.42
Product Information
Brand
Fasco
Mfr #
D1142
Wright's #
FAS D1142
Country of Origin
MEX
Specifications
C Dim
6.57"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.7/0.9
Rated Voltage
115/230
Rotation
Clockwise Shaft End
RPM
1500
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flat
Conduit Box
Extended Studs Shaft End and Lead End
