Fasco

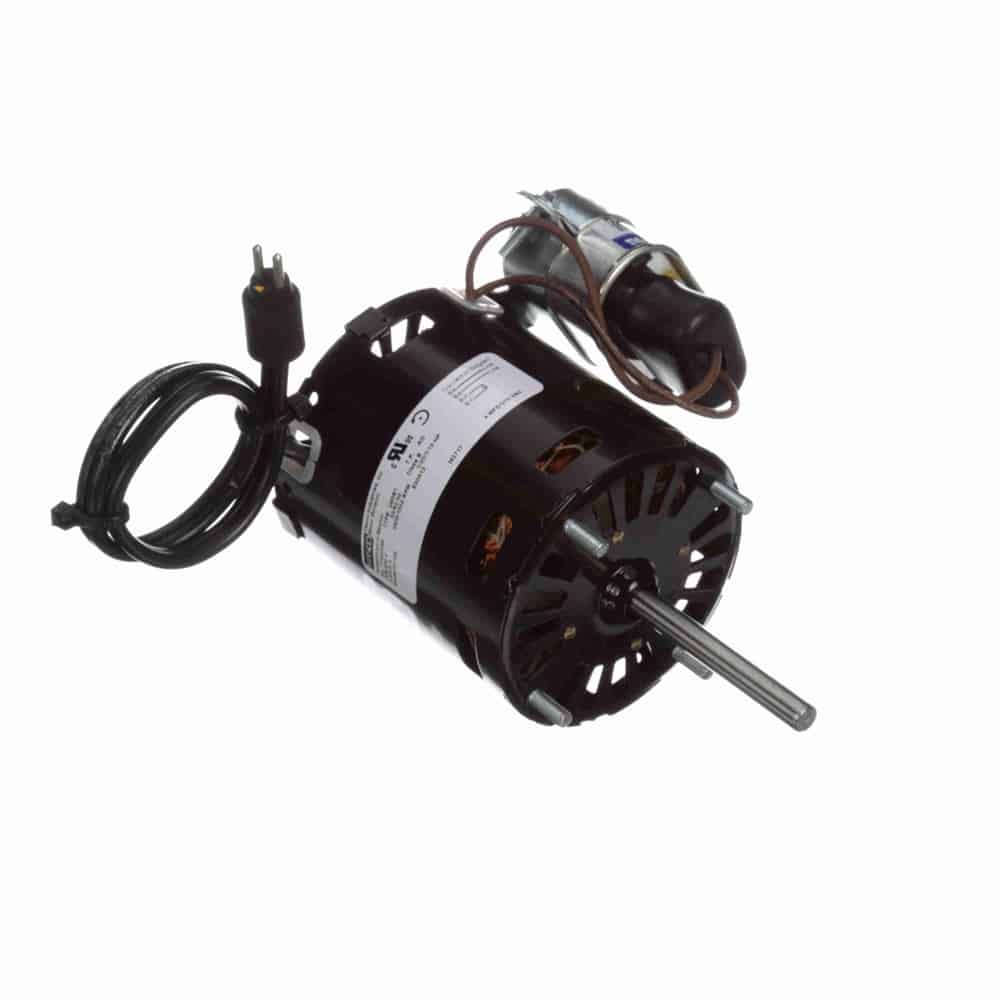

1/20/1/15HP PSC 3.3″ 1550 CCWSE 208-230V 4uF-inc
Mfr # D1125 | Wright’s # FAS D1125
1/20/1/15HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand Fasco
Mfr # D1125
Wright's # FAS D1125
Country of Origin MEX
Specifications
C Dim 6.75"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Full Load Efficiency 54
Frame 3.3"
Frequency 60/50 Hz
HP 0.05 HP
HP2 1/20/1/15 HP
Insulation Class B
kW 0.04kW
Material Steel
Max Ambient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 0.4/0.5
Rated Voltage 208-230
Rotation Counterclockwise Shaft End
RPM 1550
Service Factor 1
Shaft Diameter 0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϵ” Leads with Molded Plug
Extended Studs Shaft End
