Fasco
1/10HP ShP 3.3″ 1550 CCWSE 115V
Mfr # D1107 | Wright’s # FAS D1107

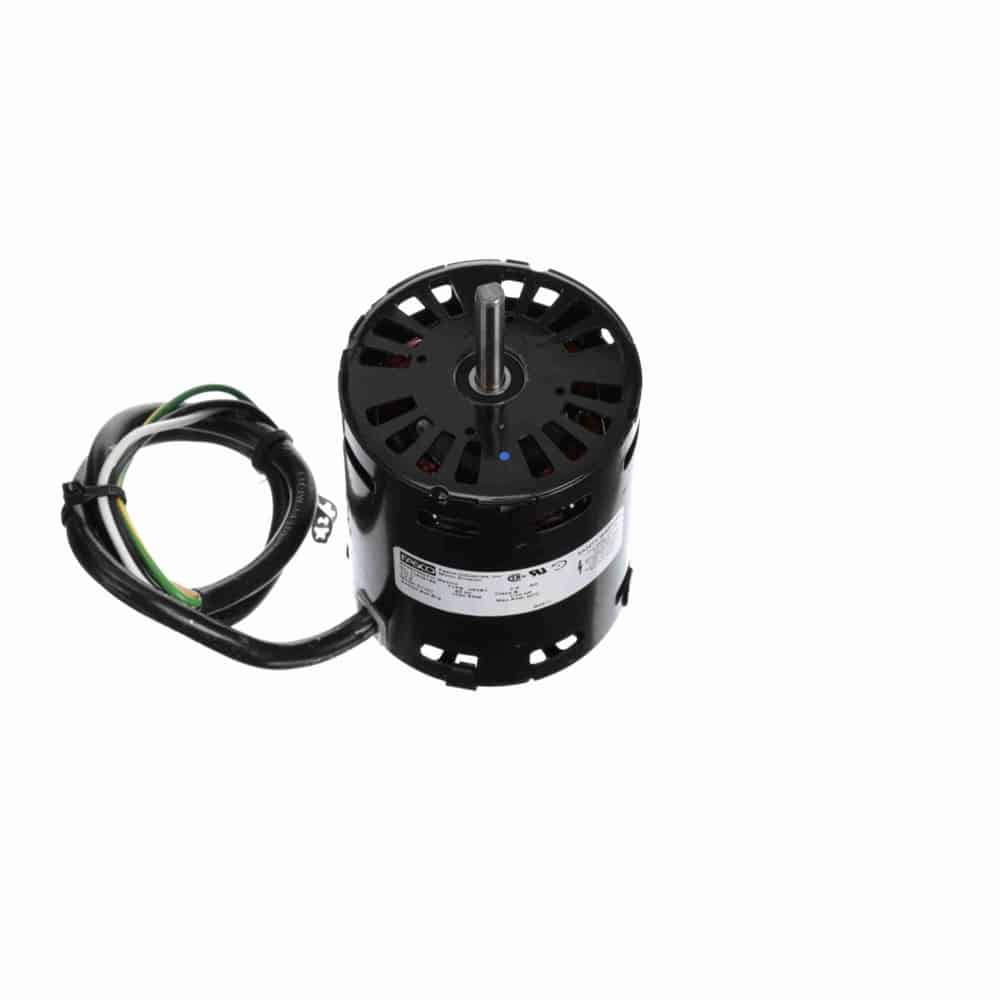

1/10HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
$177.65
Product Information
Brand
Fasco
Mfr #
D1107
Wright's #
FAS D1107
Country of Origin
MEX
Specifications
C Dim
5.42"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.1 HP
HP2
1/10 HP
Insulation Class
B
kW
0.07kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
3.2
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Shaft Diameter
0.312"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with FlatЁ” Leads
Belly Band Mount (Belly Band Not Included)
120V
