Fasco

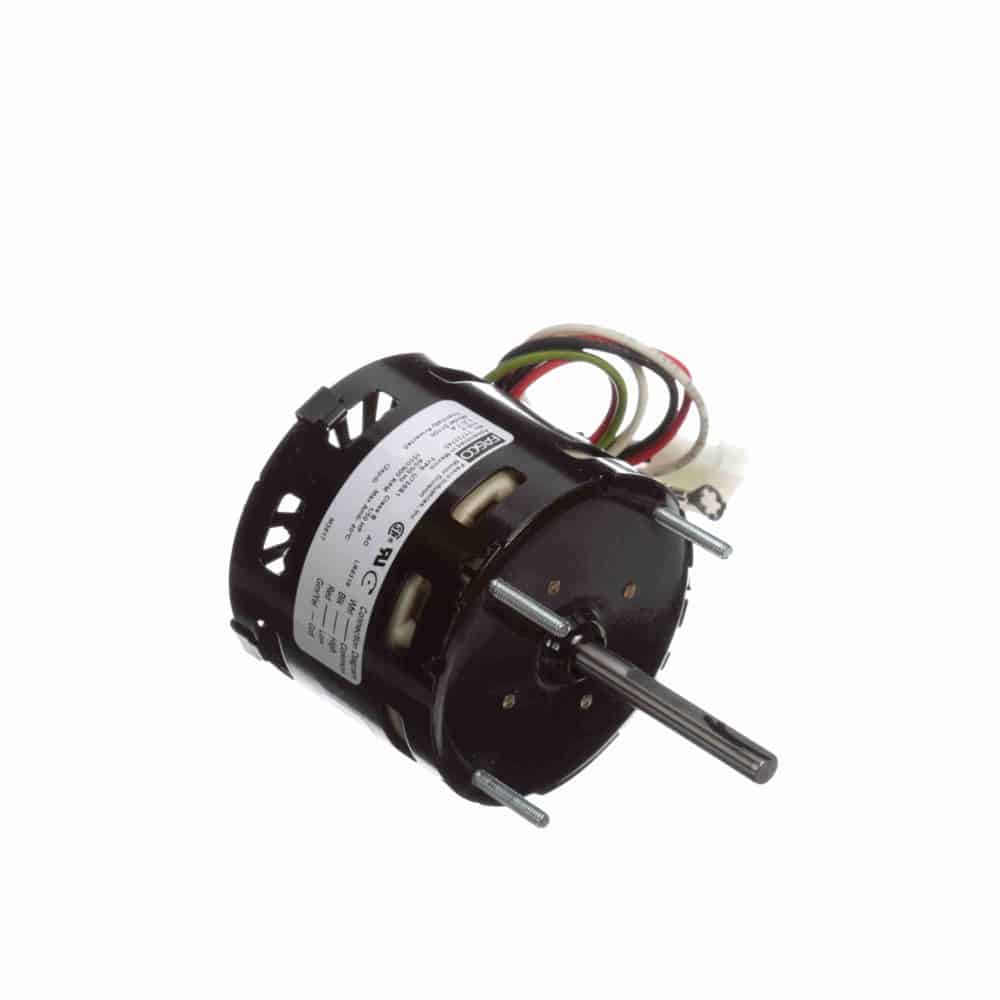

1/50HP ShP 3.3″ 2spd 1550 CWSE 115V
Mfr # D1100 | Wright’s # FAS D1100
1/50HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 2 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D1100
Wright's #
FAS D1100
Country of Origin
MEX
Specifications
C Dim
5.51"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.02 HP
HP2
1/50 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
4/6
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.2/0.7
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Shaft End End-Frame, Open Shell, Enclosed Opposite Shaft End End-Frame, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϴ” Leads with Quick Connect Terminal Housing
Extended Studs Shaft End
120V
