Fasco

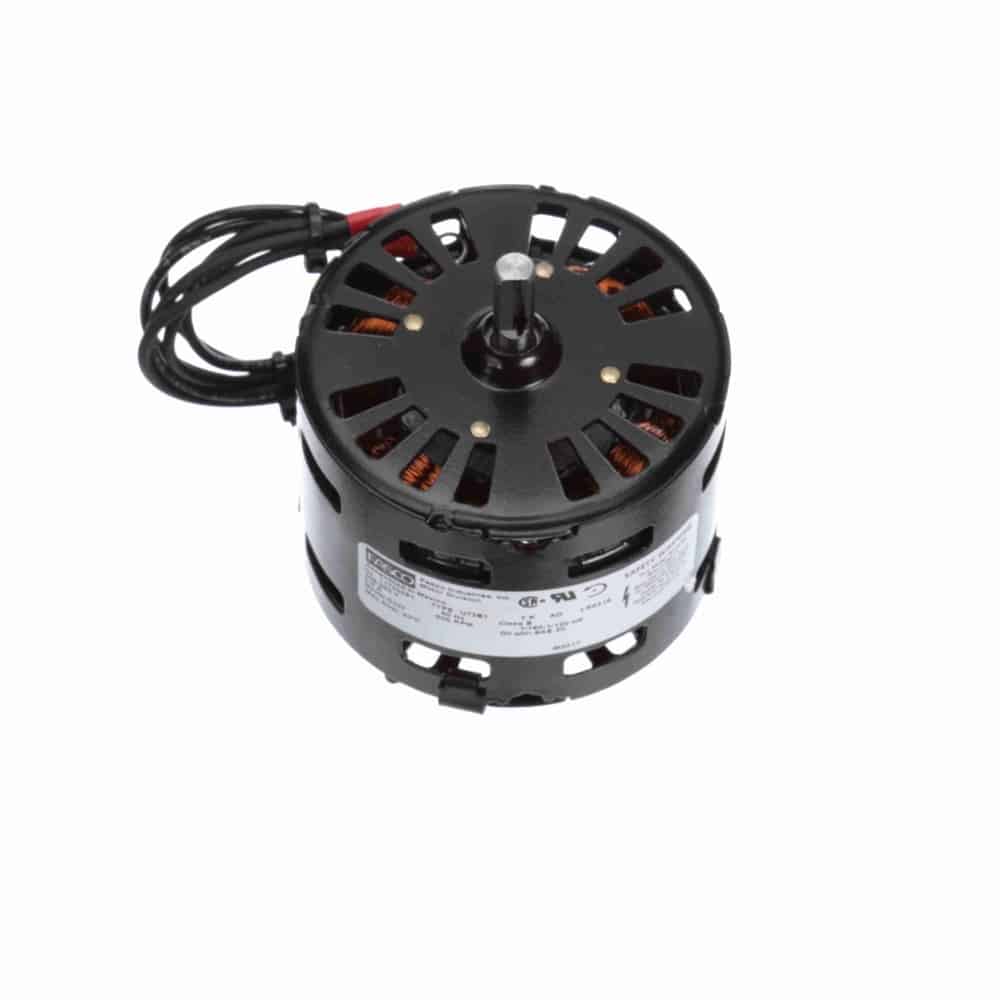

1/160HP ShP 3.3″ 600 CCWSE 208-240V BM
Mfr # D107 | Wright’s # FAS D107
1/160-1/120HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 600 RPM, 1 Speed, Shaded Pole, 208-240V, OAO Enclosure
$89.48
Product Information
Brand
Fasco
Mfr #
D107
Wright's #
FAS D107
Country of Origin
MEX
Specifications
C Dim
3.88"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.01 HP
HP2
1/160-1/120 HP
Insulation Class
B
kW
0.01kW
Material
Steel
Max Ambient
40°C
Number of Poles
12
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
0.5
Rated Voltage
208-240
Rotation
Counterclockwise Shaft End
RPM
600
Service Factor
1
Shaft Diameter
0.313"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16″ Diameter Shaft with Flatϸ” Leads with Ring Terminals
Extended Studs Opposite Shaft End
