Fasco
1/40HP ShP 3.3″ 1550 CCWSE 115V BM
Mfr # D106 | Wright’s # FAS D106

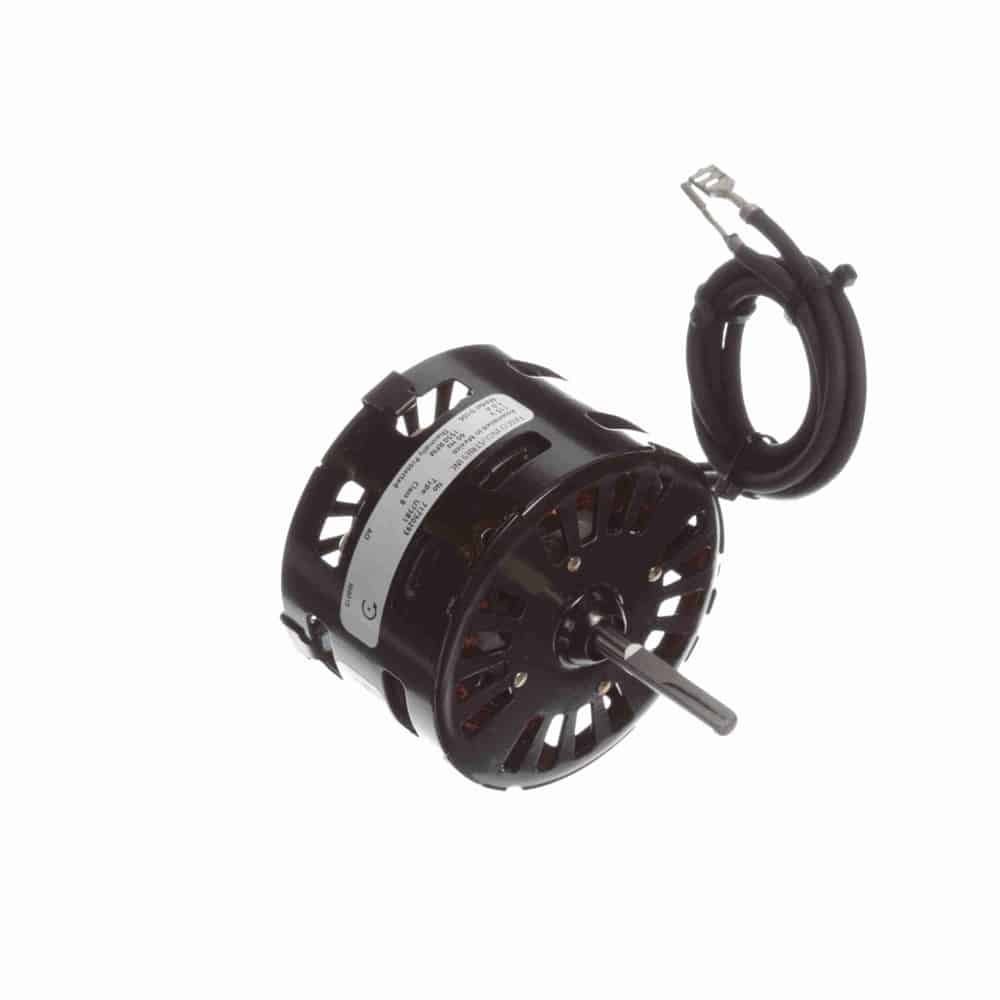

1/40HP Fan & Blower Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 1 Speed, Shaded Pole, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D106
Wright's #
FAS D106
Country of Origin
MEX
Specifications
C Dim
3.99"
Electrical Type
Shaded Pole
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.03 HP
HP2
1/40 HP
Insulation Class
B
kW
0.02kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.0
Rated Voltage
115
Rotation
Counterclockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.25"
Starting Method
Description
General Purpose Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/4″ Diameter Shaft with FlatϽ” Leads with Quick Connect Spade Terminals
Extended Studs Opposite Shaft End
120V
