Fasco

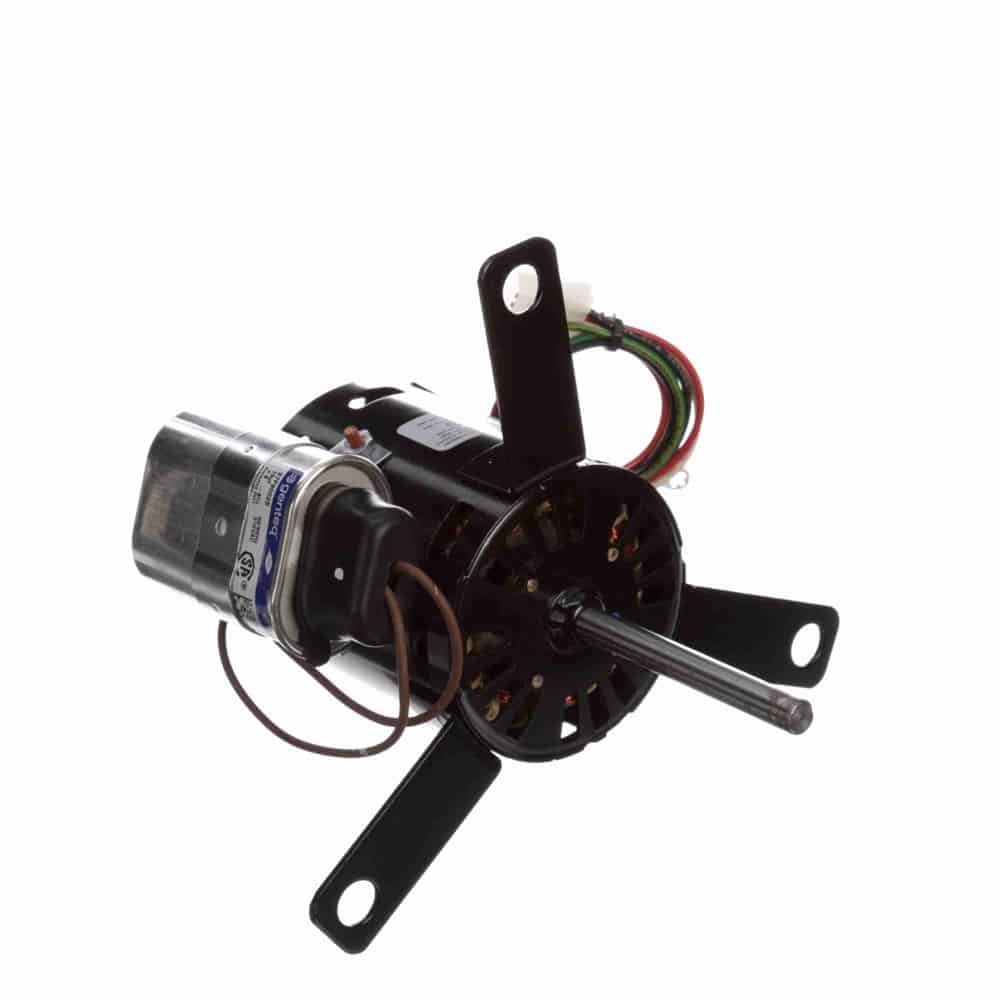

1/12HP PSC 3.3″ 2spd 1550 CWSE 115V 10uF-inc
Mfr # D0746 | Wright’s # FAS D0746
1/12HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 2 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
$189.57
Product Information
Brand
Fasco
Mfr #
D0746
Wright's #
FAS D0746
Country of Origin
MEX
Specifications
C Dim
7.38"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.08 HP
HP2
1/12 HP
Insulation Class
B
kW
0.06kW
Material
Steel
Max Ambient
50°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
1.10/0.73
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϴ” Leads with Plug Assembly
Lug Mounting
120V
