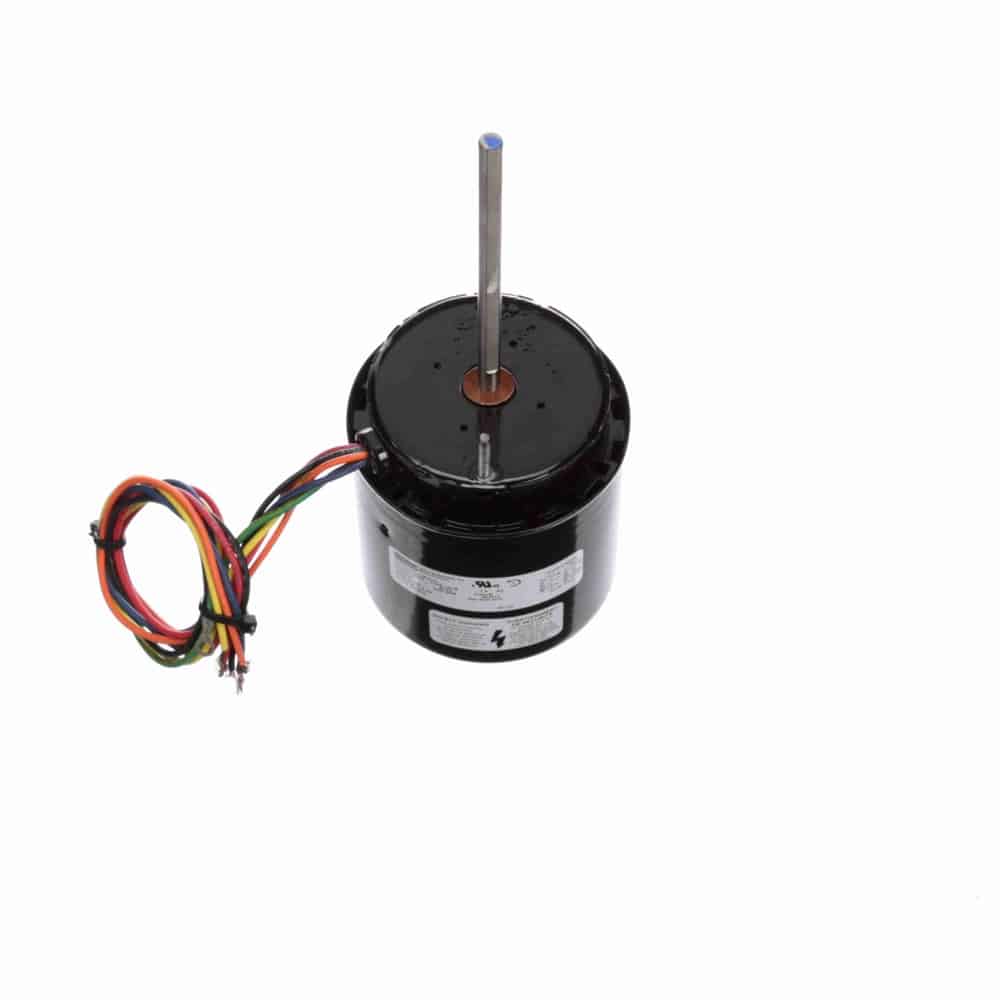

Fasco
1/15HP ShP 3.3″ 3000 CCWSE 115/230V
Mfr # D0418 | Wright’s # FAS D0418
1/15HP Ventilation Motor, 1 Phase, 3.3″ Frame, 3000 RPM, 1 Speed, Shaded Pole, 115/230V, TEFC Enclosure
$186.62
Product Information
Brand
Fasco
Mfr #
D0418
Wright's #
FAS D0418
Country of Origin
MEX
Specifications
C Dim
9.55"
Electrical Type
Shaded Pole
Enclosure
TEFC
Frame
3.3"
Frequency
60 Hz
HP
0.07 HP
HP2
1/15 HP
Insulation Class
B
kW
0.05kW
Material
Steel
Max Ambient
40°C
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.0/1.0
Rated Voltage
115/230
Rotation
Counterclockwise Shaft End
RPM
3000
Service Factor
1
Shaft Diameter
0.312"
Starting Method
Description
Refrigeration Motor
3.3″ Diameter
Shaded Pole
Thermally Protected
Totally Enclosed, Internal Fan, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16″ Diameter Shaft with Flatϼ” Leads
Extended Studs, Belly Band Mount (Belly Band Not Included)
