Fasco

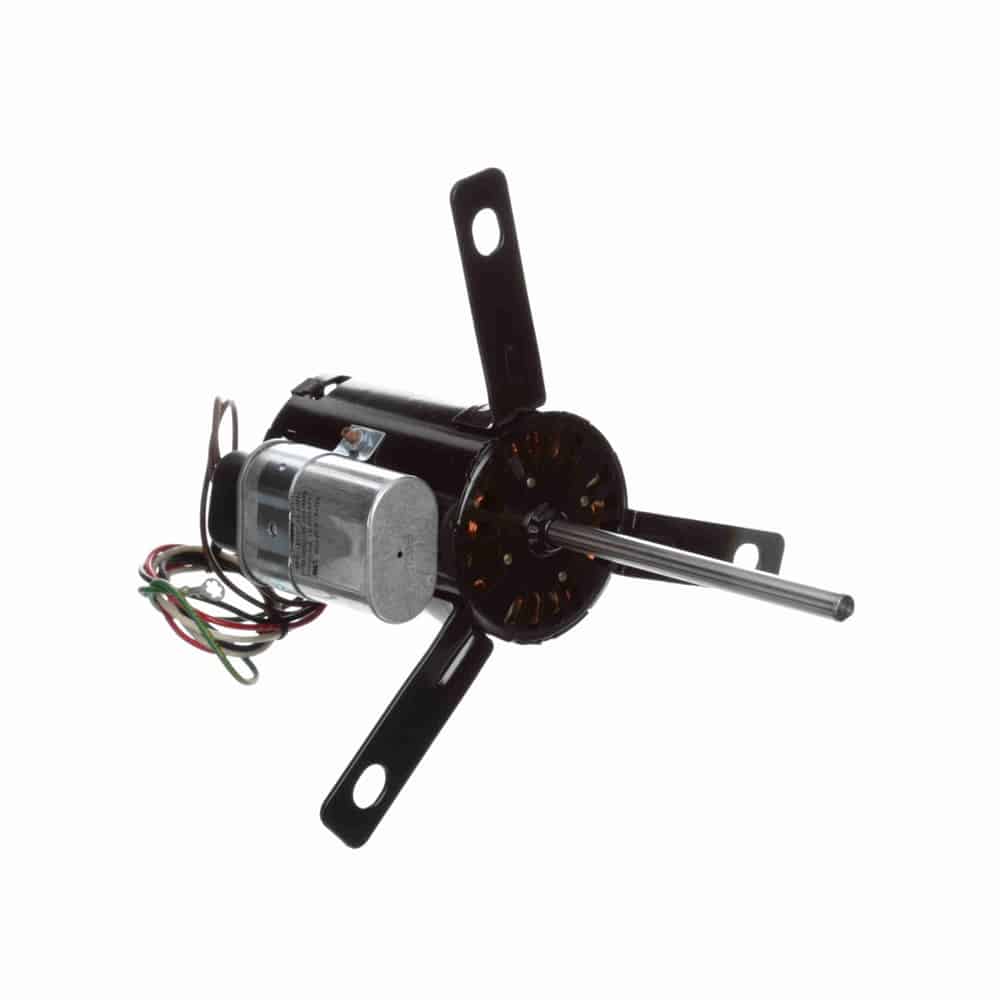

1/4HP PSC 3.3″ 2spd 1550 CWSE 115V 5uF-inc
Mfr # D0346 | Wright’s # FAS D0346
1/4HP OEM Replacement Motor, 1 Phase, 3.3″ Frame, 1550 RPM, 2 Speed, Permanent Split Capacitor, 115V, OAO Enclosure
Contact Us For Pricing
Product Information
Brand
Fasco
Mfr #
D0346
Wright's #
FAS D0346
Country of Origin
MEX
Specifications
C Dim
10.12"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Frame
3.3"
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Steel
Max Ambient
40°C
Number of Poles
4
Number of Speeds
2
Overload Protection
Thermally Protected
Phase
1
Rated Current
2.9
Rated Voltage
115
Rotation
Clockwise Shaft End
RPM
1550
Service Factor
1
Shaft Diameter
0.375"
Starting Method
Description
OEM Direct Replacement Motor
3.3″ Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame and Opposite Shaft End End-Frame, Enclosed Shell Shaft End and Open Shell Opposite Shaft End, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
3/8″ Diameter Shaft with Flatϲ” Leads with Plug Assembly
Lug Mount Shaft End
120V
